Product Introduction

This mill produces a larger range of finished particle size, higher grinding efficiency, easy maintenance and installation, long service life and other advantages. Compared with the existing domestic and foreign trapezium grinder mill, high pressure grinder mill, European version of the grinder mill and so on the traditional external reducer greatly improves the internal sealing of the body, the host covers an area greatly reduced, the equipment installation requirements are also greatly reduced.

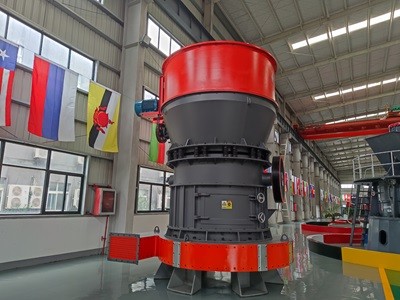

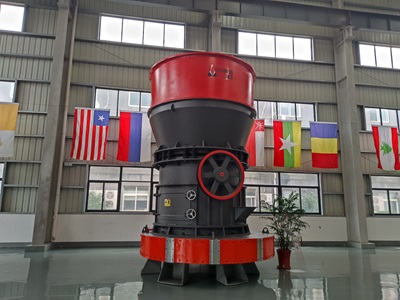

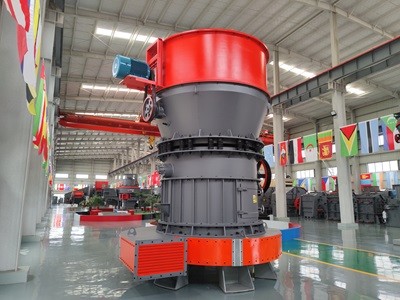

Photos

Advantages

1、Built-in reducer, compared with the traditional mill external reducer greatly strengthen the pipeline sealing, space saving, equipment can be directly installed on the ground, do not need complex foundation.

2、Inside the machine body, there is an airflow isolation ring, the airflow space is more reasonable.

3、The grinding ring adopts segmented type, easy to replace.

4、The surface of grinding roller is made of repairable material, which reduces the running cost.

5、Adopting double feeding ports, stable feeding, higher output.

6、host speed adjustable, for different materials, using different speed, more widely applicable.

7、Adjustable gap between grinding rollers and rings, adjustable according to the fineness of finished products for different needs.

Working Principle

When the grinder mill is working, the plum blossom frame and the grinding roller assembly are rotating, and the materials are evenly fed into the grinding roller assembly by the feeder, while the shovel knife fixed at the lower end of the assembly and kept at a certain angle will shovel up the fallen materials with the rotation of the assembly. With the assistance of certain wind pressure, the falling material will enter the fixed gap between the grinding roller and grinding ring to grind into powder, and the powder will rise with the airflow in negative pressure environment. After sorting by the analyser on the top of the mill, the powder that reaches the fineness will enter the pipeline and gradually run to the powder collector, and after accumulating a certain amount, the unloading valve can be opened for bagging. The residual air will run to the fan auxiliary machine, and be discharged after the dust collector extracts the dust.

Application Area

The integrated roller mill is suitable for high fine powder processing of many materials in mining, metallurgy, chemical industry, building materials and other industries, and the fine particle size of the finished product can be up to 20 μm. It is suitable for grinding all kinds of ores with Moh's hardness not more than 9.3 and water content below 10% which are not flammable and explosive, such as barite, calcite, marble, limestone and ceramics.

Technical Parameter
