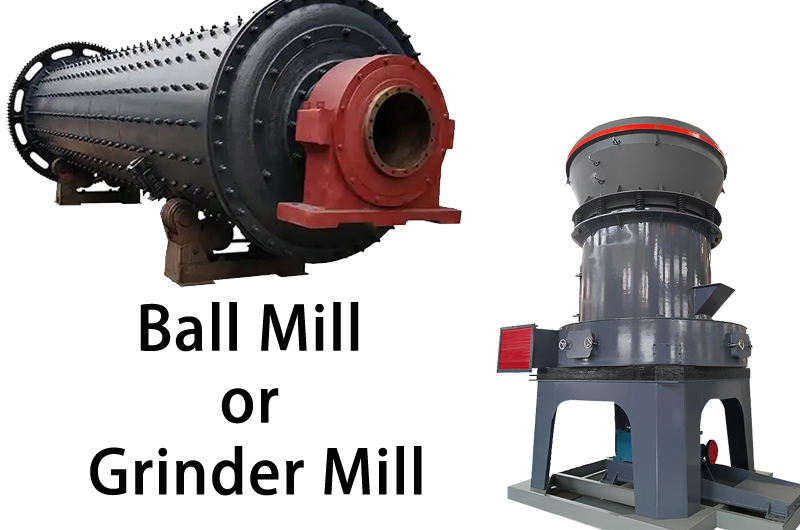

If I need to do the ore grinding process, then how do I choose the grinding mill or the ball mill.Choose a Grinder Mill if you need to process softer materials efficiently and cost-effectively. Opt for a Ball Mill if you're handling large volumes of hard materials or require flexible particle size adjustment.This article will tell you why choosing like this.

ba5621375624fe98bce7cbbc11e4bf0f 拷贝.jpg

1. Structure and Working Principle

Grinder Mill

•Structure: Includes a main unit, classifier, blower, cyclone separator, and motor.

•Working Principle: Uses oscillating grinding rollers to crush material into fine powder. Air currents carry the fine powder to a classifier for sieving.

Ball Mill

•Structure: A horizontal cylinder filled with steel balls.

•Working Principle: Rotates to lift and drop balls that crush and grind material through impact and friction.

2. Price

•Grinder Mill: Generally cheaper, simpler design, easier maintenance.

•Ball Mill: Higher initial cost due to complex structure but can be more economical for large-scale production.

3. Suitable Materials

•Grinder Mill: Best for softer materials (Mohs hardness ≤7), like calcite, talc, barite.

•Ball Mill: Handles harder materials, such as iron ore, copper ore, and is used in cement and glass industries.

4. Efficiency and Energy Consumption

•Grinder Mill: High efficiency for medium to low-hardness materials; less efficient for very hard materials.

•Ball Mill: Higher energy consumption but can handle larger volumes and harder materials.5. Maintenance and Operation
