Product Introduction

This high pressure grinder mill is suitable to grind barite, limestone, ceramics, slag and other non-flammable and non-explosive materials whose Mohs hardness is less than 9.3 and humidity is  below 6%, it can process more than 680 kinds of materials in mining, metallurgy, chemical, building materials and other industries, the finished particle size in the mesh range is adjustable (up to 800 mesh). The machine can produce 30-80 mesh coarse powder by adding special devices.

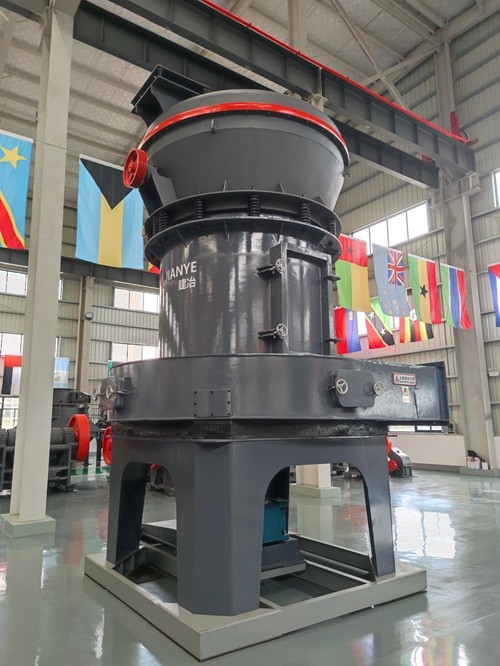

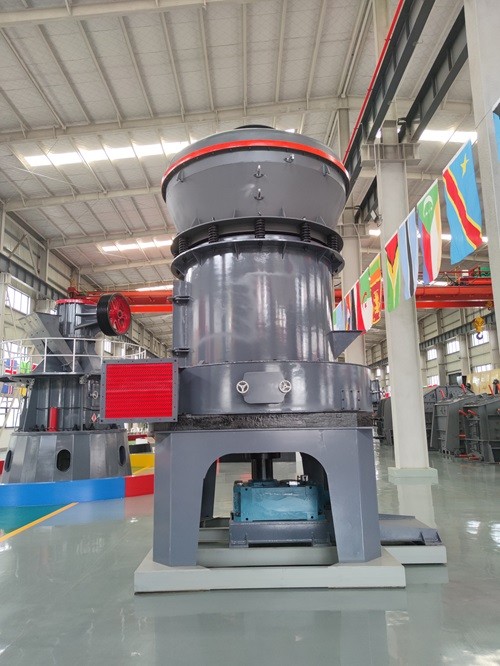

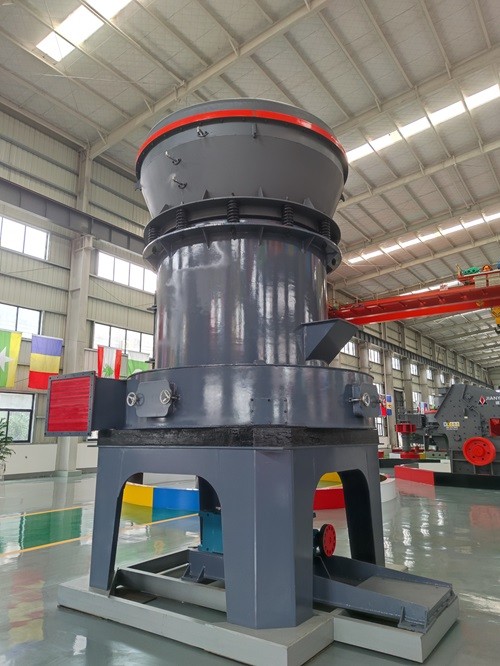

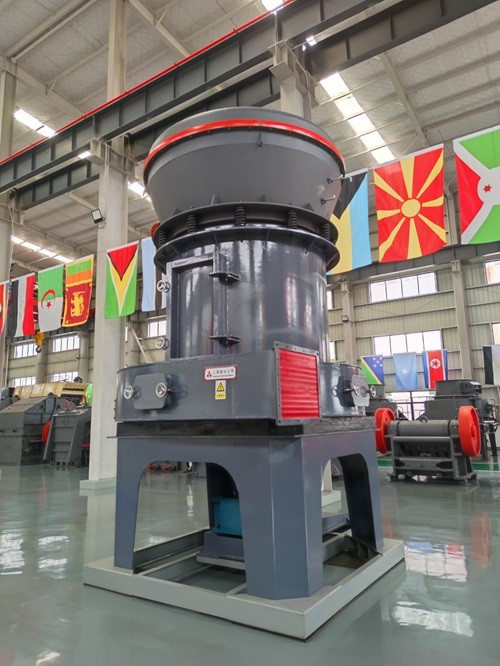

Equipment Photos

Product advantages

High efficiency and energy saving: High pressure grinding mill adopts high pressure grinding process, which has high crushing efficiency and low energy consumption, and can effectively reduce production costs.

Wide range of application: The high pressure mill is suitable for grinding a variety of materials, especially for the processing of medium hardness and high hardness materials, with a wide range of application.

High quality of finished products: The high pressure mill adopts advanced grinding technology and reasonable grinding chamber design, which can grind the material into extremely fine powder to meet the needs of high-quality products.

Easy operation and maintenance: The high pressure mill is simple in structure, easy to operate, and adopts modular design, easy to maintain and reduce labor costs.

Environmental protection and safety: The high-pressure mill is equipped with dust removal device and noise reduction device, which can effectively reduce dust emission and noise pollution, and meet the environmental protection requirements. At the same time, its safety performance is high, can ensure the safety of the operator.

High reliability: The high pressure mill uses high quality materials and advanced technology, has high mechanical strength and wear resistance, and can ensure long-term stable operation.

Various models available: According to different needs, there are a variety of models to choose from, which can meet the needs of different scales and production capacity

Working Principle

The working principle of the high pressure mill is as follows:

After entering the high pressure mill, the material is first driven by the centrifugal force generated by the rotation of the motor reducer and the suspension roller, and is fed into the abrasive layer between the grinding rolls. As the abrasive layer continues to compress, the material is gradually ground under the action of shear force and extrusion pressure. At the same time, the blade scoops up the material and sends it between the mill roller and the mill ring, where it is further rolled and kneaded to refine the powder.

During the grinding process, the powder is continuously extruded and screened by an classifier. Powders that meet the requirements are drawn into the blower, while large particles that do not meet the requirements continue to be ground on the roller until the fineness requirements are met. The finished powder is discharged from the discharge outlet, collected and packaged, and can be used as a finished product.

Throughout the operation of the high pressure mill, by adjusting the length of the high pressure spring, a constant grinding pressure can be maintained between the grinding roller and the grinding ring to ensure stable output and fineness. At the same time, in order to ensure that the system works under negative pressure, the excess air will enter the bag dust collector for purification.

Application Area

The application of high pressure mill is very wide, it can be used to process materials of various hardness, such as barite, limestone, ceramics, slag and other 680 kinds of non-flammable and non-explosive materials. After being processed by high pressure grinding mill, these materials can become a variety of particle size ultrafine powder, widely used in mining, metallurgy, chemical, building materials and other industries in the production process. At the same time, the high pressure mill can also be used in highway construction, water conservancy and hydropower engineering fields, as the processing of quartz, feldspar, calcite, limestone, talc, ceramics, marble, granite, dolomite, bauxite, iron ore, barite, bentonite, coal gangue, coal and other materials.

In addition, the high pressure mill can also be used in the processing of  activated carbon and other non-flammable and non-explosive materials whose humidity is less than 8% and Mohs hardness is below 6.

In summary, the application field of high pressure grinder mill is very wide, it can be used in various hardness of material processing, especially suitable for high fineness, high efficiency grinding production needs.

Technical Specifications
