Product Introduction

The Shanghai Jianye HPT series multi cylinder hydraulic cone crusher is a new generation of hydraulic cone crushers developed and applied through several generations of products, based on nearly 30 years of experience in crusher research and development, combined with advanced domestic and foreign technologies. On the basis of the traditional multi cylinder hydraulic cone breaking spindle fixation, eccentric sleeve rotating structure around the spindle, and laminated crushing principle, the HPT series has made breakthrough optimizations to the equipment structure, significantly improving the equipment's performance and crushing capacity. The hydraulic lubrication system with supporting design ensures the reliable operation of the equipment while also making the operation control more intelligent and user-friendly.

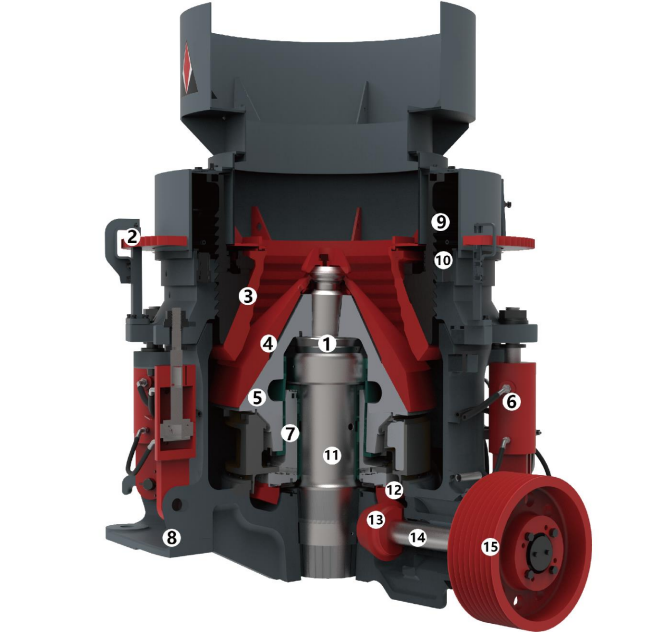

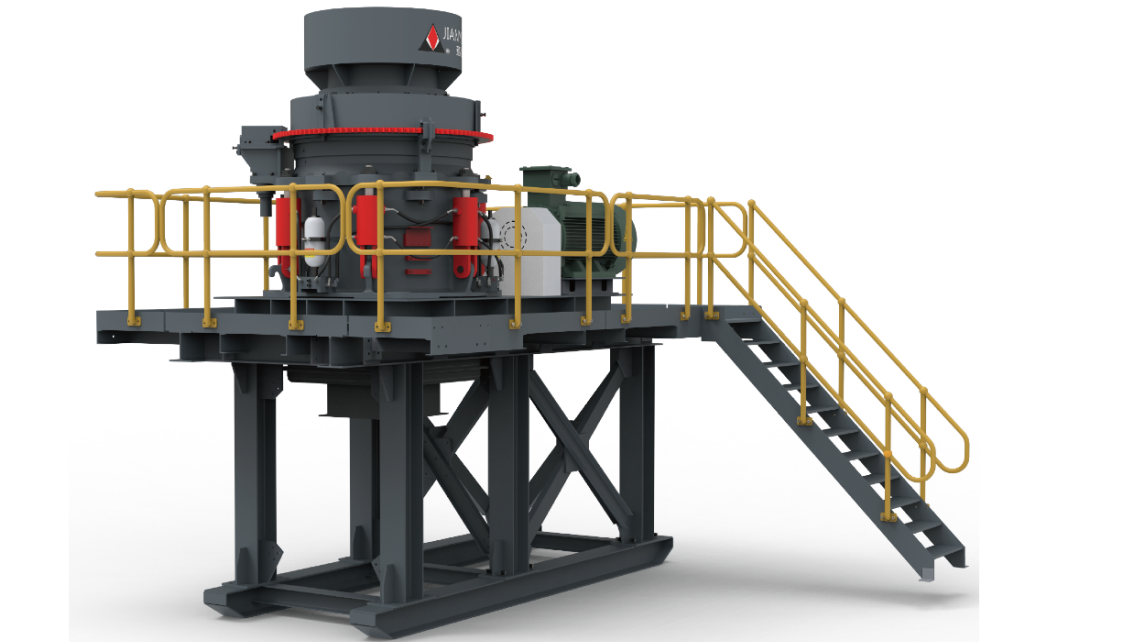

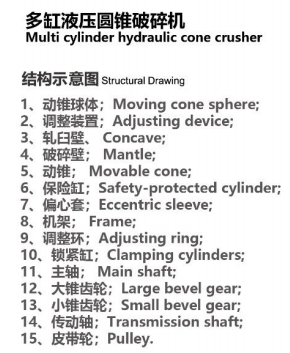

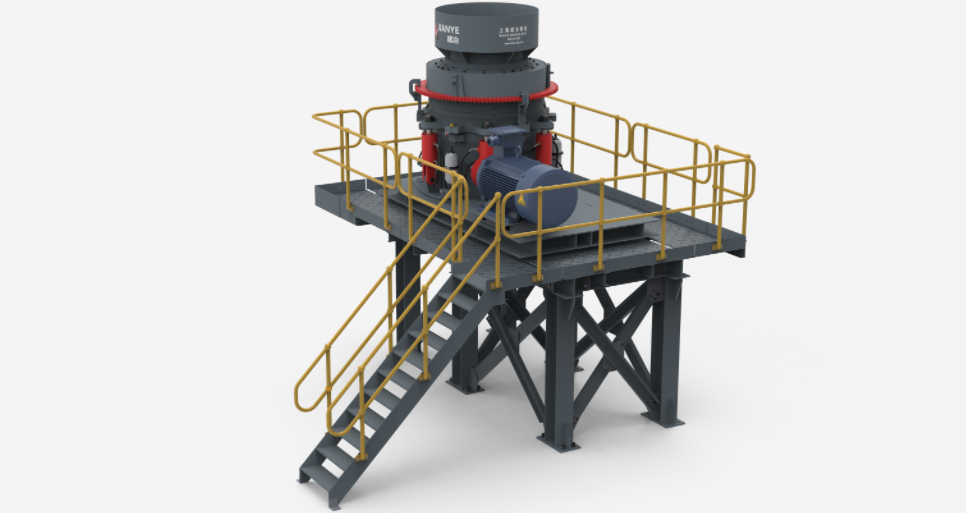

Photos

Advantages

1. Higher efficiency in structural upgrading

On the basis of the unique structure of fixed spindle and eccentric sleeve rotating around the spindle, the equipment further optimizes the design of transmission rotating parts and lubrication sealing structure, resulting in strong load-bearing capacity and low noise.

2. Accurate and reliable full hydraulic control

Using full hydraulic control, the equipment is operated hydraulically from safe cavity cleaning to adjustment and locking, making it more stable and reliable, and easy to operate. Based on rich practical experience, the hydraulic system structure is comprehensively optimized, with more accurate adjustment and control, faster automatic protection response speed, and can also achieve fully automated operation.

3. Hydraulic lubrication integrated equipment control automation

Equipped with an integrated hydraulic lubrication system and a centralized automated intelligent control system, it saves the cost of hydraulic lubrication investment and monitors the operating status of the equipment in real time. The control system is further optimized, making it more stable and reliable, ensuring the safe and stable operation of the equipment, and making equipment operation more worry free and labor-saving.

4. Good particle shape of laminated crushing discharge

The principle of laminated crushing is used to crush materials. By optimizing the equipment and cavity, the efficiency of laminated crushing is improved. The crushing efficiency is high, the wear of vulnerable parts is low, the finished product particle shape is cubic, and the content of fine particles is high. This improves the quality of the finished product and reduces the production cost of the equipment and the entire system.

5. Multi cavity conversion for multiple purposes with one machine

Multiple intermediate and fine crushing chamber types have been configured, and only a small number of parts such as corresponding chamber type liners need to be replaced to switch between chamber types. Combined with the principle of laminated crushing, it better meets the requirements of intermediate and fine crushing processes, achieving one machine with multiple uses. The crushing wall and rolling mortar wall are made of high manganese steel. Due to the change in the crushing chamber shape and the protection of the material layer during laminated crushing, the wear is reduced, and the general service life can be increased by 35% to 82% compared to the old structure cone crusher.

Working Principle

When the HPT series multi cylinder hydraulic cone crusher is in operation, the motor drives the equipment transmission shaft to rotate through the belt pulley and triangular belt. The transmission shaft drives the eccentric sleeve to rotate around the main shaft through the large and small bevel gears. The eccentric sleeve drives the dynamic cone to rotate and swing, making the dynamic cone and fixed cone sometimes close to and sometimes far away from the rolling mill wall. The material is continuously compressed and impacted in the crushing chamber formed by the rolling mill wall and the crushing wall, and the crushed material is discharged from the bottom.

Application Area

The HPT multi cylinder hydraulic cone crusher is used in industrial sectors such as metallurgy, mining, cement, chemical industry, as well as in highway construction, water conservancy engineering, construction gravel, sand making, etc.

Technical Parameter
