Product Introduction

This series of products are specially designed for washing, grading and dewatering of sand, quartz sand and other units. Its novel sealing structure, adjustable overflow weir plate. Ensure the high efficiency and durability of this series of products. It is suitable for sand and gravel factory, construction site, hydropower dam, glass manufacturing industry, oil well development industry and other sand units.

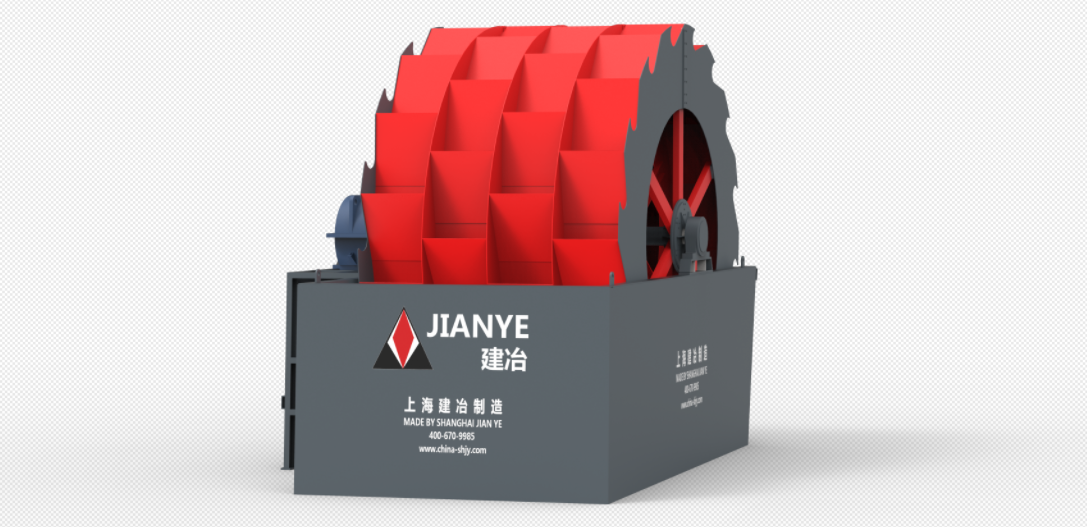

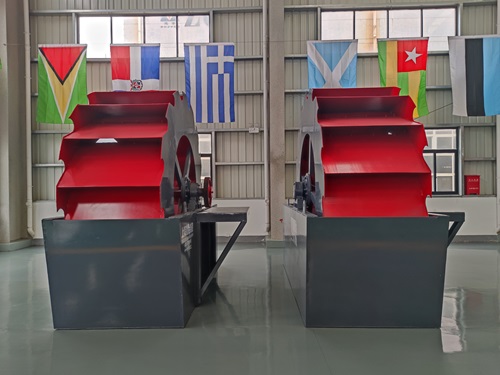

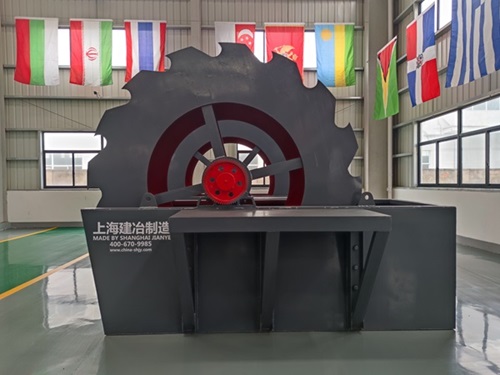

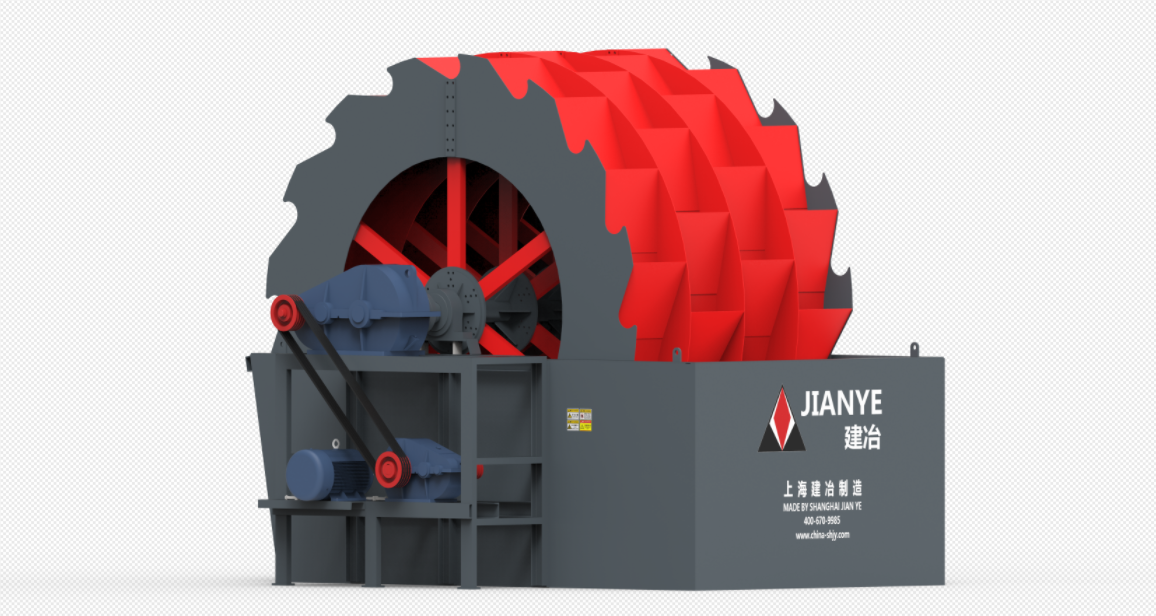

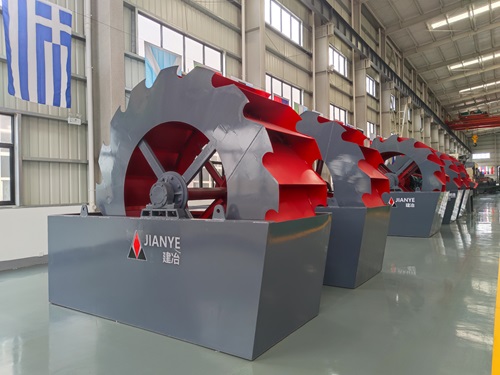

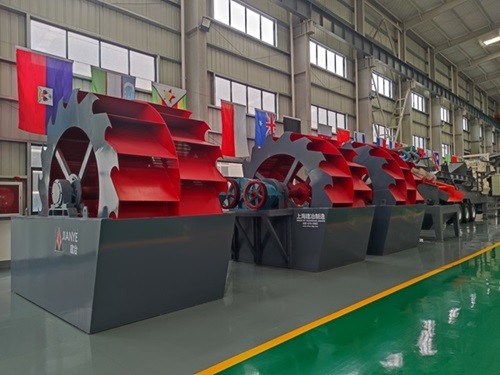

Photos

Advantages

1. Innovative sealed structure, adjustable overflow weir plate, improve water utilization efficiency;

2. Reasonable product structure, large production capacity per unit time, low unit output electricity consumption;

3. High cleanliness, washed sand is more round, increasing the value of mechanism sand;

4. Wheel-type sand washing machine equipment design, transmission parts such as bearings are well isolated from water, with low equipment failure rate.

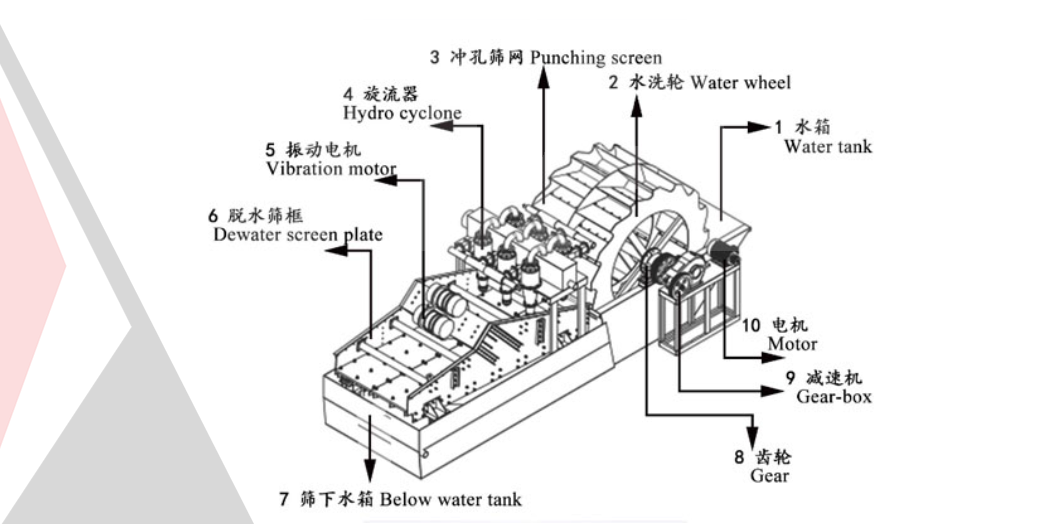

Working Principle

The working principle of impeller sand washing machine mainly includes the following aspects:

Motor drive: the impeller sand washing machine is driven by a motor, which drives the impeller to rotate, thus generating power.

Material conveying: the power generated by the rotating impeller conveys the material from the inlet to the washing tank.

Cleaning and separating: In the washing tank, the materials are friction and collision with each other by the rotating force of the impeller, meanwhile, water is added to form a strong water current, which flushes away the impurities and soil covering the surface of the sand and gravel and discharges them from the overflow port. The clean gravel is taken away by the blades and poured into the discharge tank from the rotating impeller, completing the cleaning operation of gravel.
Dewatering: The centrifugal force generated by the rotating impeller will further dewater the cleaned gravel and improve the cleaning effect.

Discharge: after cleaning and dewatering gravel, discharged from the discharge chute, completing the whole cleaning process.

To sum up, the impeller sand washer realises the cleaning and separation of gravel and slag particles through the steps of motor driving, material conveying, cleaning and separating, dewatering and discharging. With the features of simple structure, high washing degree, large capacity, energy saving and environmental protection, this equipment is widely used in the washing needs of various different industries.

Application Area

Impeller sand washing machine is widely used in the following fields:

Sand and gravel quarry: it is used for cleaning, grading and dewatering of sand and gravel to meet the demand of sand for construction, sand and gravel for road building.

Mines: In the mining process of mines, impeller sand washer can be used to clean mineral sand, remove impurities and improve the quality of mineral sand.

Concrete mixing plant: It is used to clean concrete aggregate to ensure the quality and strength of concrete.

Mineral processing industry: used for ore selection and separation, improve the grade and utilisation of ore, chemical industry, refractory materials, metallurgy, cement, glass, ceramics, electric power and other industries: used for cleaning, removing impurities and grading of various materials.

Technical Parameter
