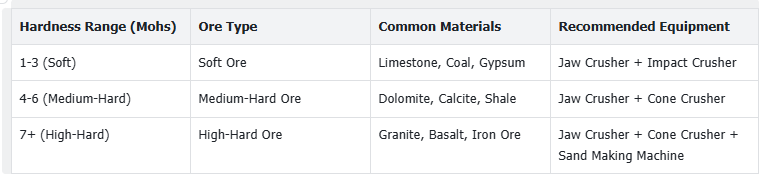

1. How to Classify Ore Hardness? (Equipment Selection Step)
We usually classify ore types by Mohs hardness.
Key Conclusion: The higher the hardness, the higher the requirements for equipment wear resistance and compression resistance.
2. How to Select Equipment for Soft Ores (e.g. Limestone)?
Recommended Equipment

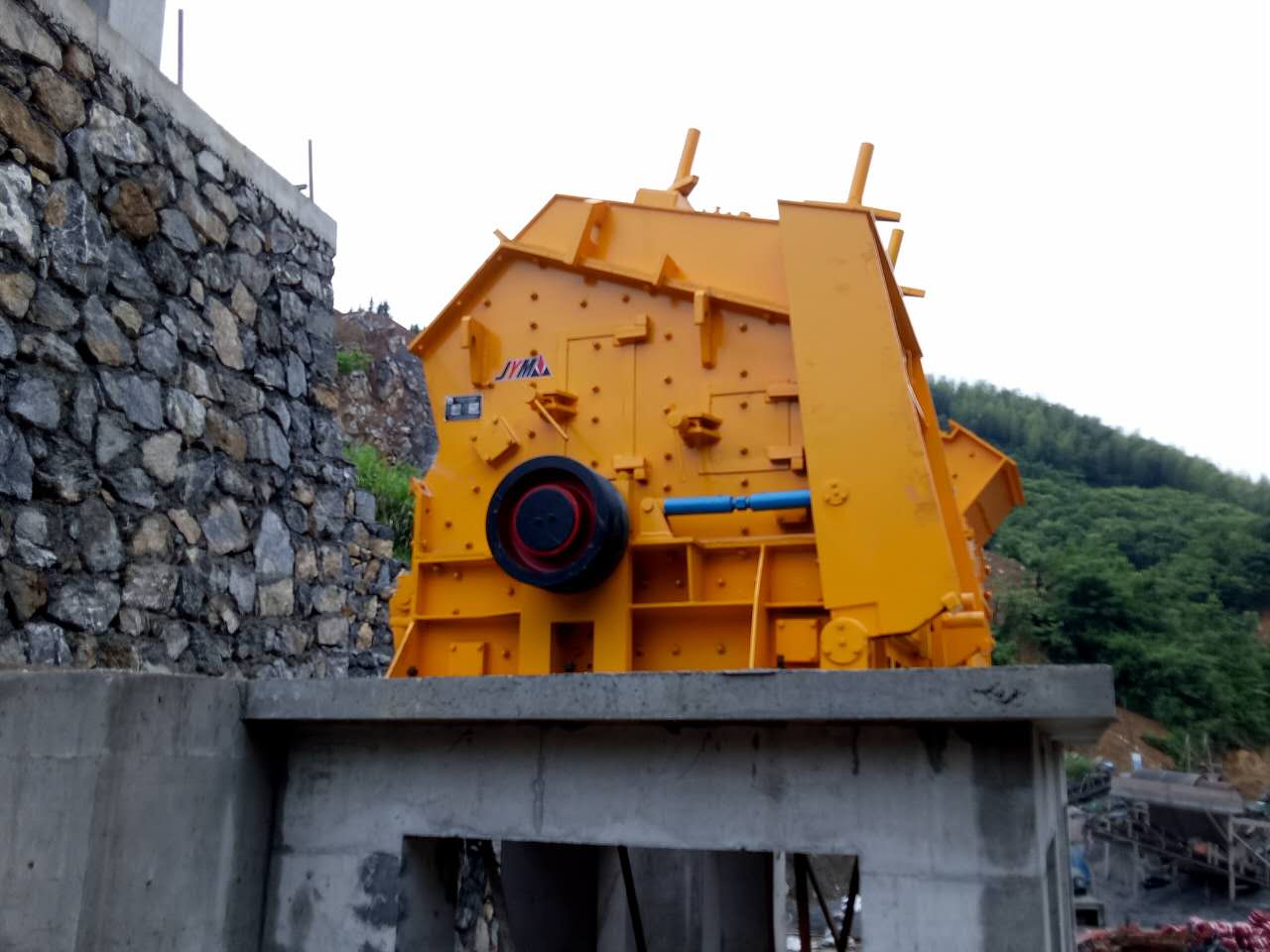

◆Jaw Crusher (primary crushing)
◆Impact Crusher (secondary & fine crushing)
Advantages:
◆Low cost
◆Good final product grain shape
◆Simple maintenance
The Truth:Many manufacturers recommend cone crushers, but this is over-equipped for soft materials — high cost and low cost-performance ratio.
3. Selection Scheme for Medium-Hard Ores (e.g. Dolomite)
Recommended Equipment:
◆Jaw Crusher (primary crushing)
◆Cone Crusher / Impact Crusher (choose one)
Selection Advice:
◆For better grain shape → choose Impact Crusher
◆For higher durability → choose Cone Crusher
The Truth:Although the impact crusher produces good-looking final products, its blow bars wear out quickly, so long-term costs may be higher than cone crushers.
4. Must-Do Selection for High-Hard Ores (e.g. Granite)!
Recommended Equipment:
◆Jaw Crusher (primary crushing)

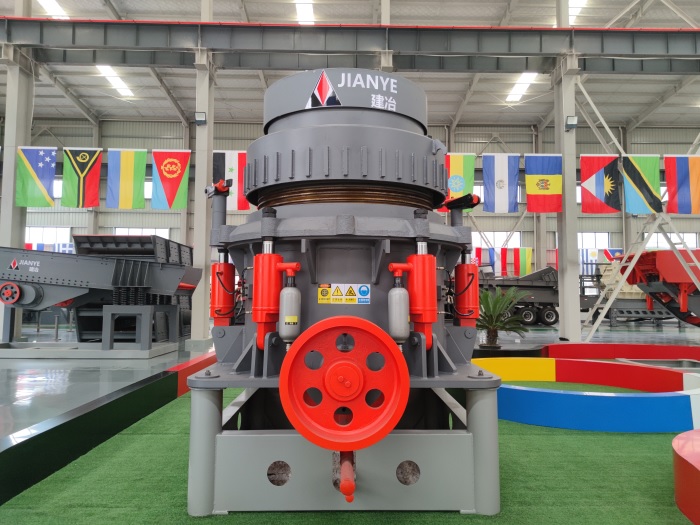

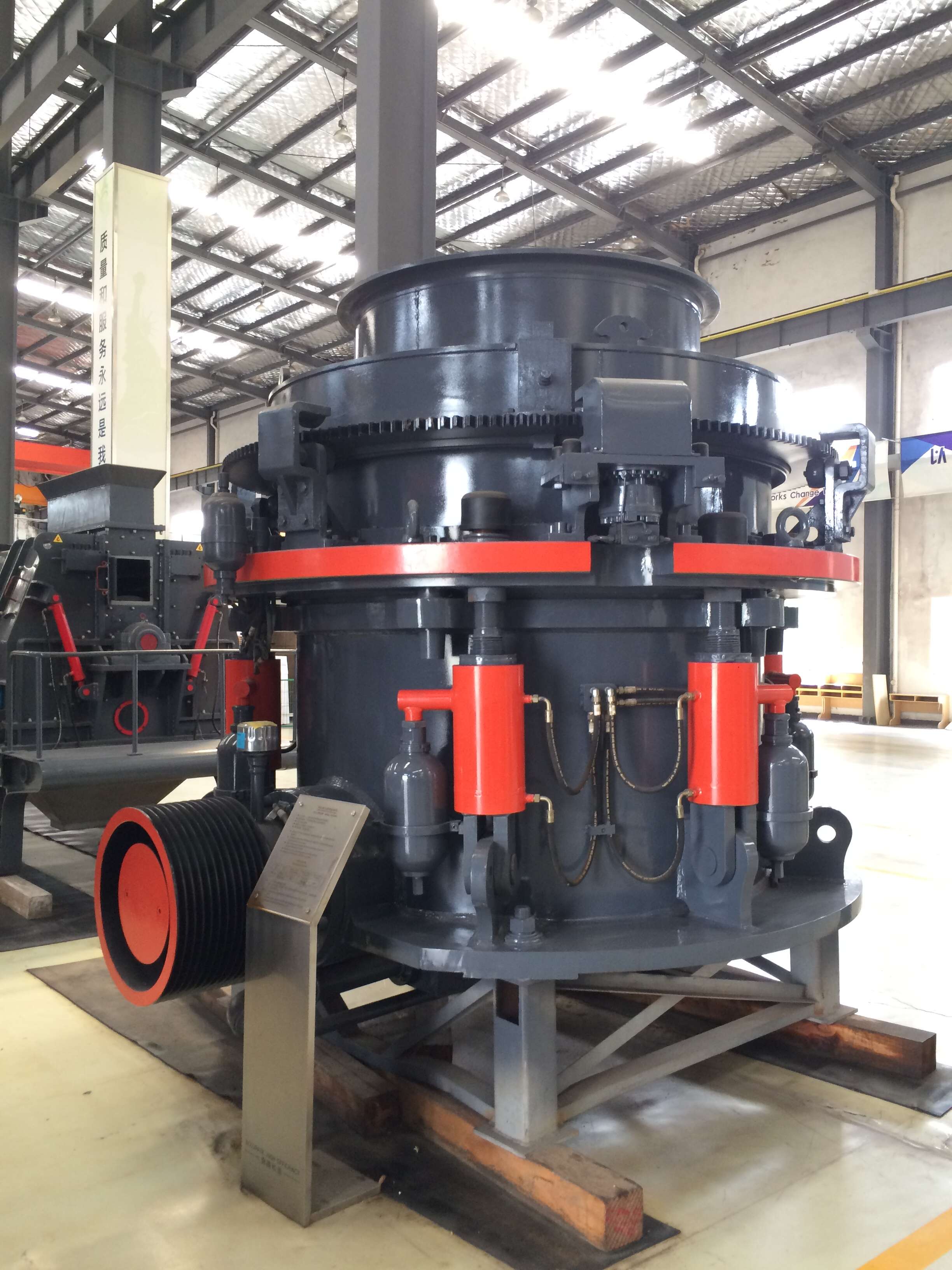

◆Cone Crusher (secondary & fine crushing)
◆Sand Making Machine (shaping)
Why not use Impact Crushers?
◆Extremely fast wear of wear parts
◆High maintenance frequency
◆Large losses from downtime
The Truth (Critical):
Using impact crushers for high-hard materials = a money-burning operation
80% of users have fallen into this trap

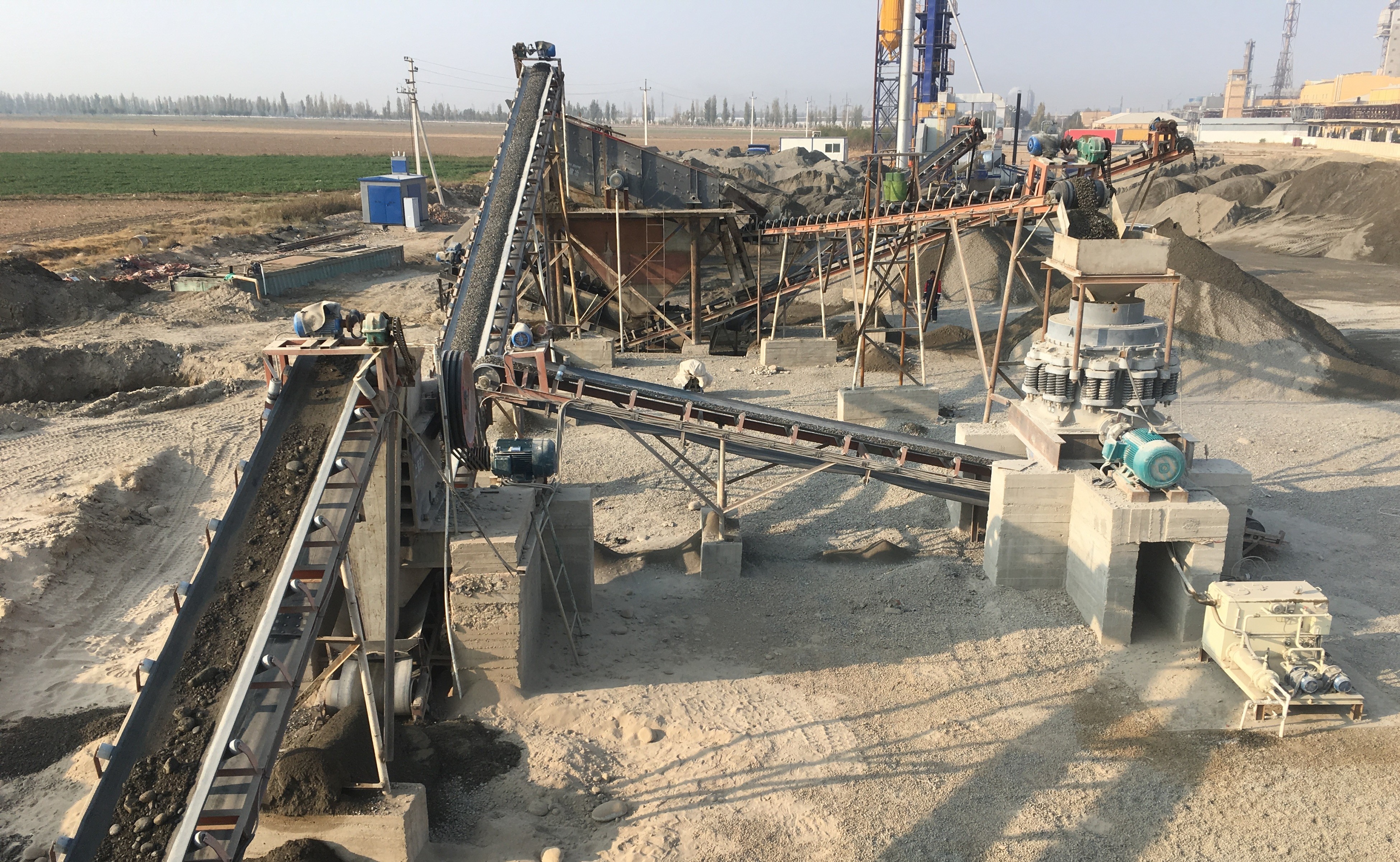

5. Complete Production Line Recommendations
Scheme 1 (General Type):
◆Jaw Crusher + Cone Crusher + Vibrating Screen
Scheme 2 (High-Quality Aggregate):
◆Jaw Crusher + Cone Crusher + Sand Making Machine + Sand Washer
6. 3 Core Principles for Equipment Selection (Avoid Pitfalls)
1️⃣ Focus on cost per ton, not just priceLow-price equipment ≠ Low cost
2️⃣ Base on material properties, not sales recommendationsOre properties vary greatly
3️⃣ Prioritize mature process schemesAvoid trial-and-error costs

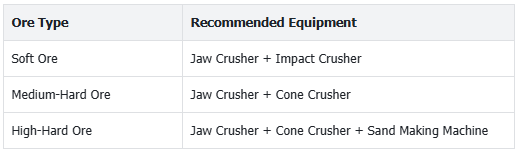

7. Summary: One Chart to Guide Equipment Selection
8. Contact Us
If you are planning a mining project or upgrading a production line, please provide the following information for a customized solution:
◆Raw material type
◆Feed size
◆Target output
◆Final product specification
We can provide you with free equipment selection + configuration quotation.
