1. What Is Crushing Ratio? It Is More Than Just a Number
Crushing ratio usually refers to the ratio between the maximum feed size and the maximum discharge size of the material. On the surface, it may look like a simple parameter. However, in engineering practice, the crushing ratio directly determines the degree of deformation that the material undergoes during a single crushing process.
When one single crusher is required to handle an excessively large crushing ratio, the material often cannot be broken gradually along its natural cracks. Instead, it tends to be destroyed by strong impact or irregular fracture. This is one of the fundamental reasons why final particle shape becomes difficult to control.
2. Does a Higher Crushing Ratio Always Mean Worse Particle Shape?
The crushing ratio itself is not simply “the larger, the better” or “the smaller, the better.” The key lies in whether it matches the equipment structure and the crushing method.
Within a reasonable range, a higher crushing ratio can simplify the overall process. However, once it exceeds the design capacity of the equipment, the material will be subjected to highly uneven forces inside the crushing chamber. Some particles may be over-crushed locally, while others may not be sufficiently crushed.
This unbalanced crushing state will eventually appear as fluctuations in final aggregate shape and an unstable particle size distribution.
3. Why Is “One-Pass Crushing” Difficult to Achieve in Engineering Practice?
The idea of “one-pass crushing” is essentially to complete two tasks through a single crushing process: reducing large feed size and optimizing final particle shape at the same time. However, in real engineering applications, these two goals often conflict with each other.
When the crushing ratio is set too high, the equipment behaves more like it is “tearing” the material apart rather than crushing it step by step. In contrast, particle shape optimization requires repeated, relatively moderate, and directionally controllable force application.
Therefore, multi-stage crushing is not an unnecessary complication of the system. It is a technical approach that respects the natural crushing behavior of materials.

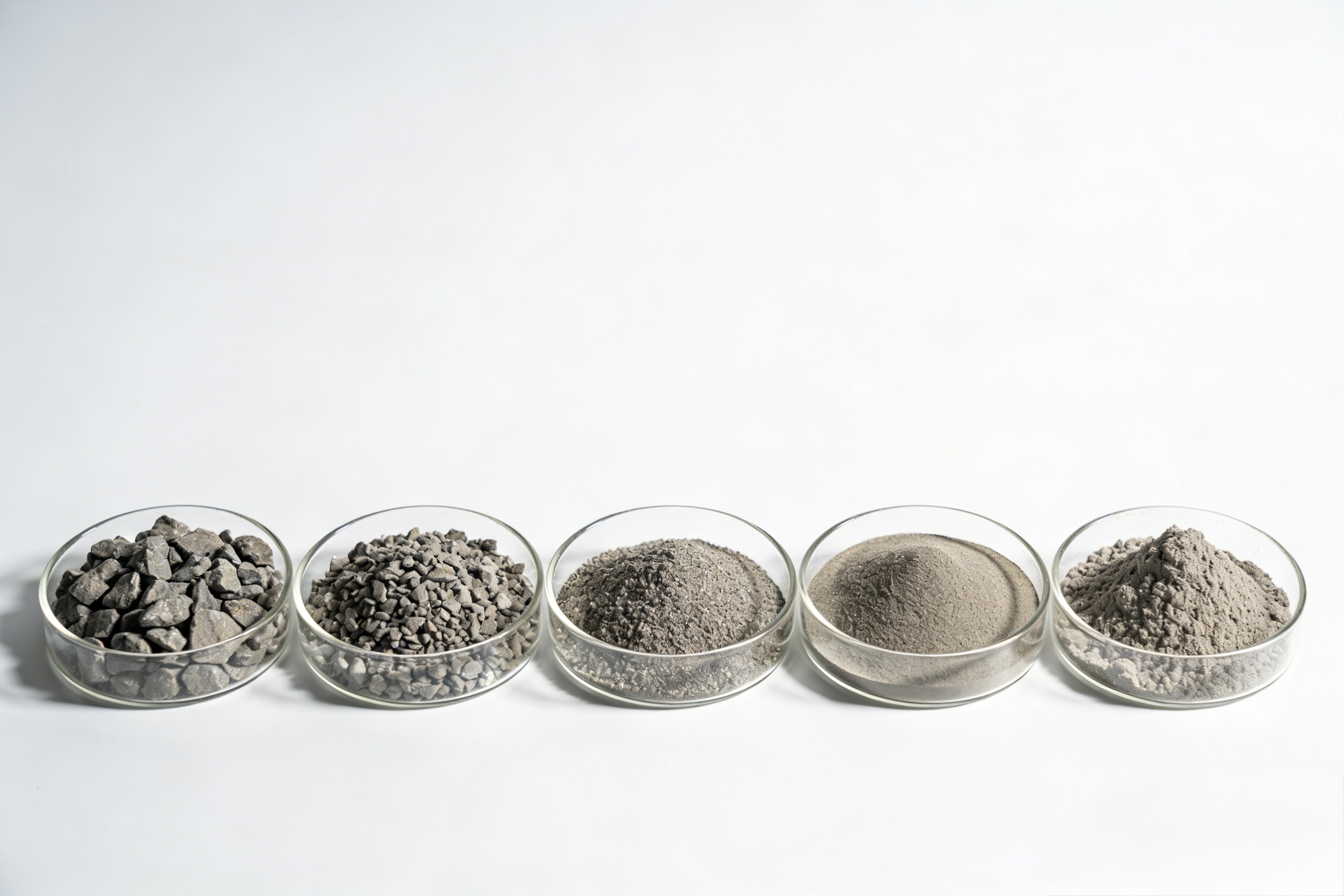

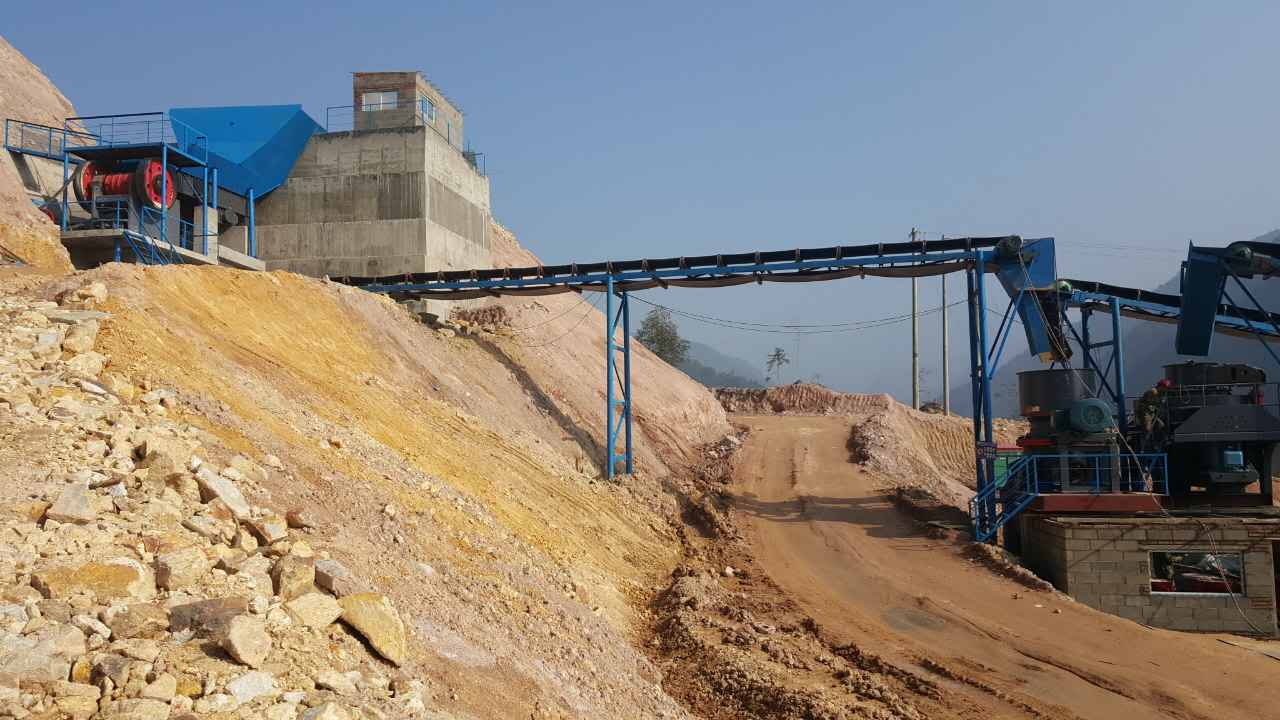

4. How Multi-Stage Crushing Improves Particle Shape Structure
By dividing the total crushing ratio into several stages, such as primary crushing, secondary crushing, and fine crushing, each crusher can operate within the crushing range it is designed for. During this step-by-step crushing process, the material is more likely to form a stable laminated crushing state, and the fracture path becomes more controllable.
This method not only helps reduce the content of flaky and elongated particles, but also makes the final particle size distribution more concentrated. As a result, it creates better conditions for subsequent screening or sand-making processes.
5. The Hidden Relationship Between Crushing Ratio and Equipment Service Life
An excessively large crushing ratio often means that the equipment is operating under non-design working conditions for a long period of time. Components such as the moving cone, liners, and main bearings will be exposed to significantly increased impact loads, which accelerates wear.
By contrast, although multi-stage crushing may require more equipment, the load on each individual machine becomes more reasonable. The service life of wear parts is easier to control, and the overall maintenance cost of the system may actually be lower.
6. Understanding “Particle Shape Is Designed by the System” from a System Perspective
Final particle shape is not simply “adjusted” by changing one parameter at a certain moment. It is determined during the system design stage.
The reasonable distribution of crushing ratio, the proper combination of crusher types, and the clear definition of crushing targets at each stage are the fundamental guarantees for stable and controllable final aggregate shape.
For a production line that pursues long-term stable operation, accepting the engineering logic of multi-stage crushing is an important step toward higher efficiency and lower operating cost.
