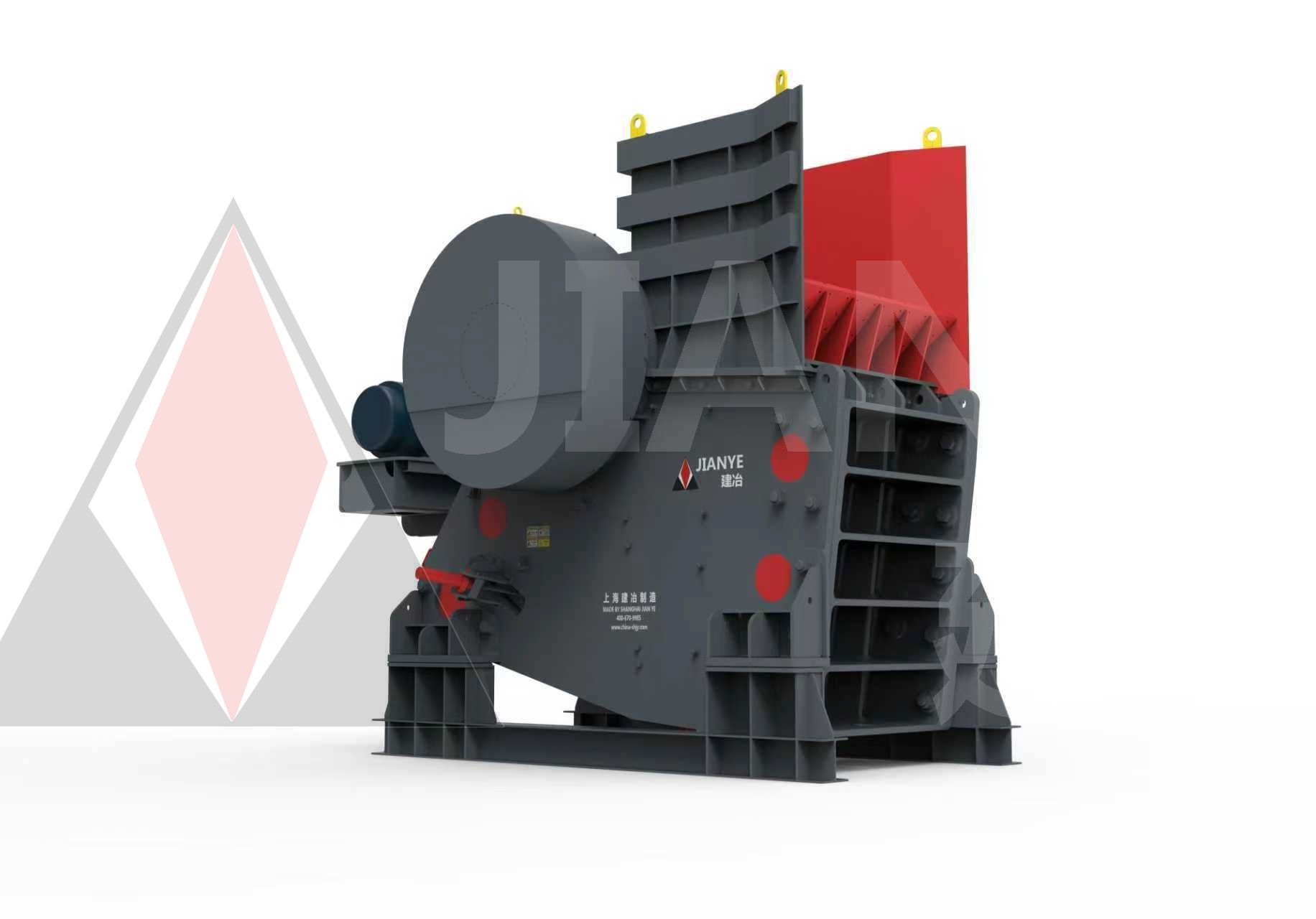

Product Introduction

JYCX European jaw crusher is an efficient and high-quality jaw crusher developed and manufactured by Shanghai Jianye Heavy Industry Co., Ltd. This machine draws on advanced technology and experience both domestically and internationally, and is designed specifically to meet the demand of the European market for efficient, energy-saving, and environmentally friendly crushing equipment.

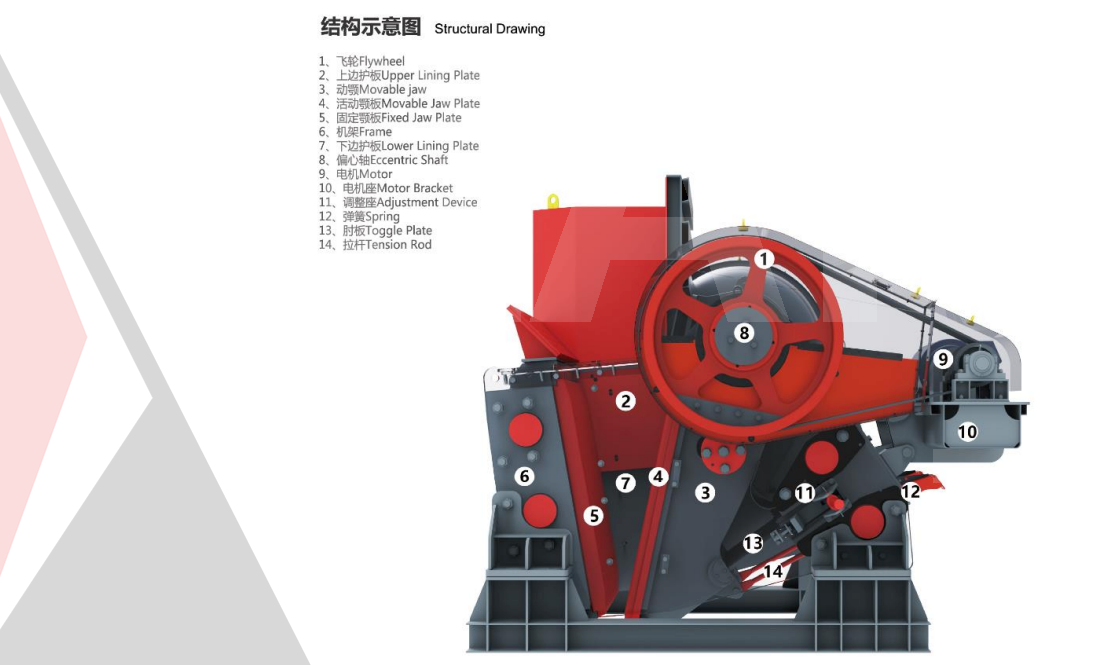

The main structure of the JYCX European jaw crusher consists of a moving jaw, a fixed jaw, an adjustment device, a transmission device, and other parts. The squeezing and stretching motion between the moving and fixed jaws can crush and refine large pieces of material.

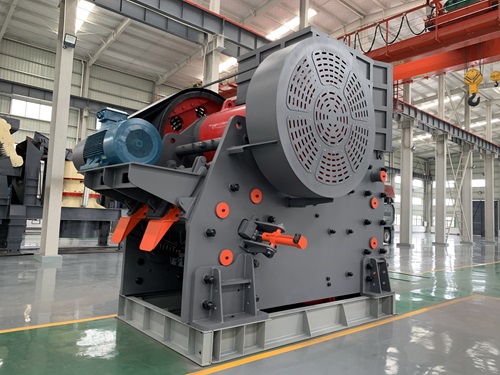

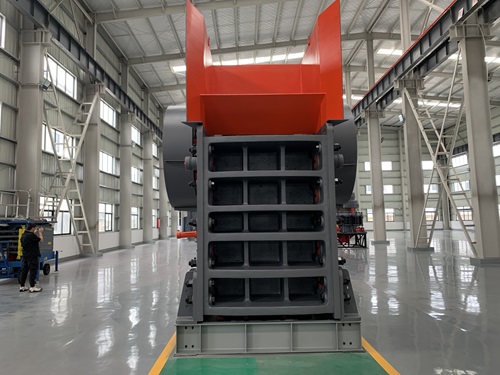

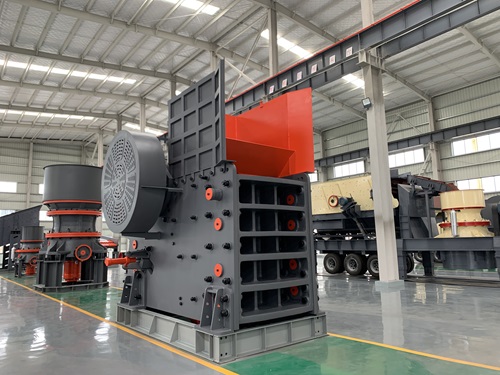

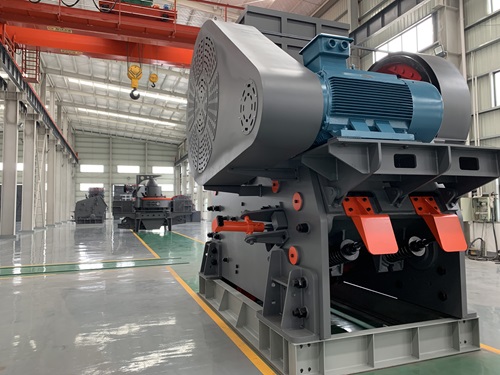

Photos

Advantages

1. The rack is welded from high-quality steel plates, which have higher strength and fatigue life compared to ordinary steel plates; After welding, the rack undergoes annealing treatment to avoid stress concentration when subjected to impact loads.

2. The jaw head is cast using advanced technology, with higher strength and more stable performance.

3. The spindle is forged from high-quality steel, and after quenching and tempering treatment, it has higher yield strength, tensile strength, more stable performance, and a longer service life.

4. Adopting a large centrifugal and inclined elbow design, the effective stroke at the bottom of the crushing chamber is larger.

5. Wide range discharge port design, small discharge ports can produce products with finer particle size, while large discharge ports can produce large output products; Hydraulic adjustment of discharge port, more convenient and stable.

6. Compared with ordinary jaw crusher, the JYCX European jaw crusher has a simple foundation, more convenient installation, and practicality.

Working Principle

The electric motor drives the belt and pulley, which swing the moving jaw up and down through an eccentric shaft. When the moving jaw pushes the moving jaw plate towards the fixed jaw plate, the material is crushed or chopped. When the moving jaw and the moving jaw plate retreat under the action of the eccentric shaft and spring, the previously crushed or split material is discharged from the lower discharge port of the jaw plate. With the continuous rotation of the electric motor, the crusher jaw periodically crushes and discharges materials, achieving mass production.

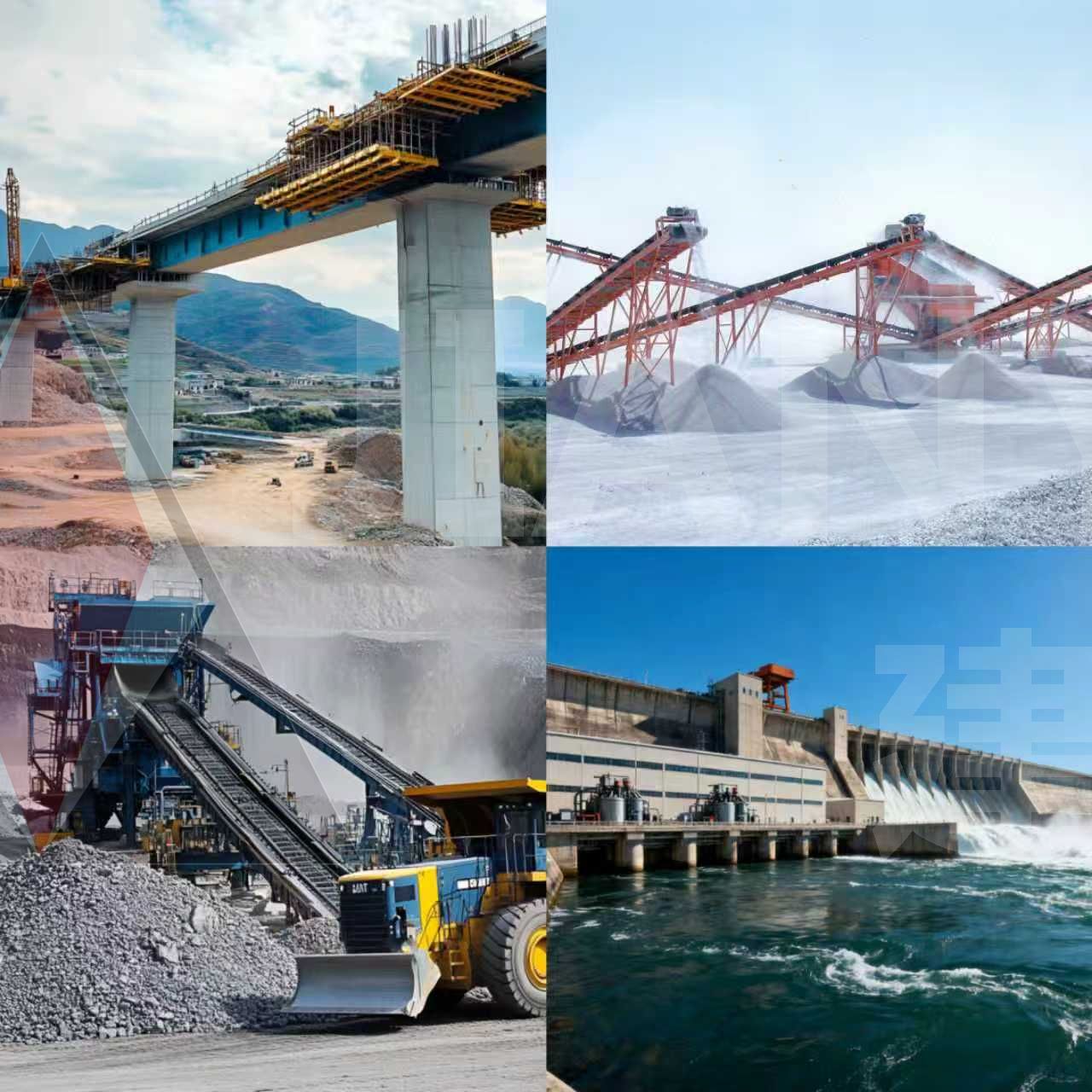

Application Area

The JYCX European jaw crusher is widely used in many fields such as mining, smelting, building materials, highways, railways, water conservancy, and chemical industry. It can crush materials of various hardness, such as rocks, ores, concrete, etc., and is particularly suitable for crushing hard and highly corrosive materials.

Meanwhile, the JYCX European jaw crusher is also widely used in industries such as construction, water conservancy, road construction, and chemical engineering. Due to its high efficiency, energy conservation, environmental protection, and easy maintenance, it can demonstrate excellent performance in these fields, providing efficient, environmentally friendly, and economical crushing solutions.

Technical Parameter
