Product Introduction

Impact crusher is a kind of equipment with the advantages of simple structure, large crushing ratio, low energy consumption, high output, and the material is cubic after crushing. It is mainly used in mineral making, cement, construction, refractory materials, coal, glass and other industrial sectors for crushing all kinds of medium-hardness materials, such as limestone, clinker, slag, coke, coal and so on.

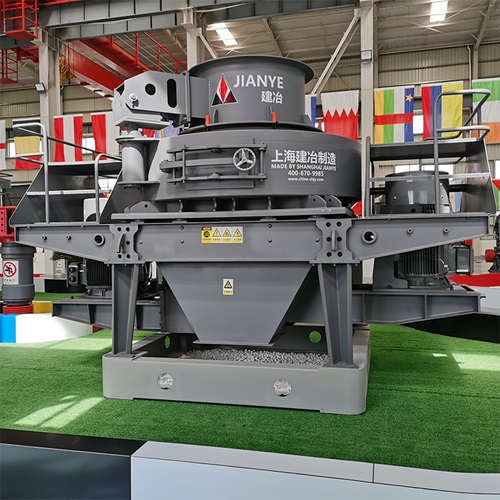

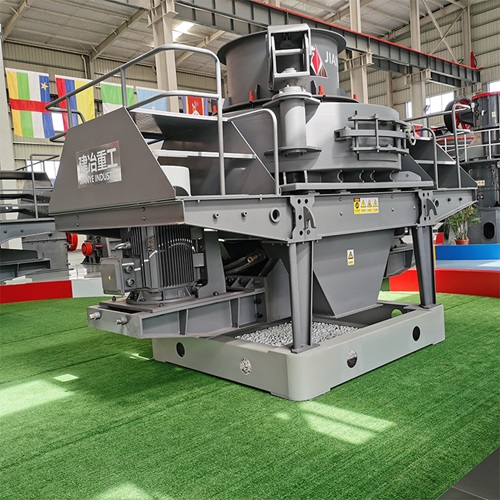

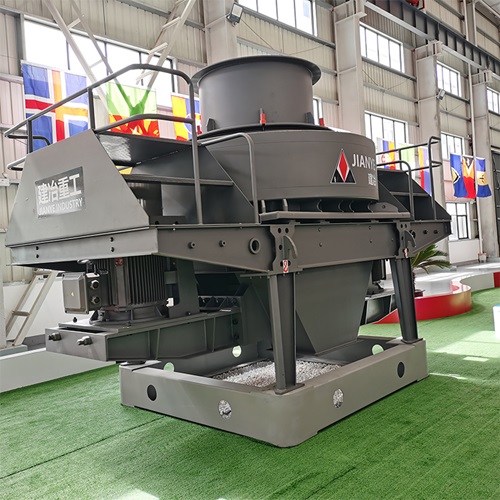

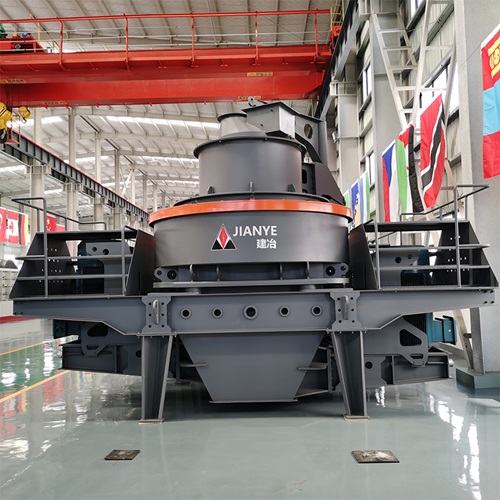

Photos

Advantages

1. Impact crusher has simple and reasonable structure and low running cost;

2. Impact crusher is driven by double motors with high production efficiency;

3. Vertical shaft impact crusher with super fine crushing capacity, suitable for sand making;

4. JYS impact crusher is little affected by the moisture content of the material, the moisture content can be up to about 8%;

5. The sand making machine is able to overcome the medium and high hardness ores, and the hard rock crushing ability is strong;

6. Impact crusher products have excellent grain shape, cubic, with very low needle flake content;

7. The impeller self-lining of the artificial sand plant has little abrasion and is easy to maintain;

8. The working noise of the sand making equipment is lower than 75 decibels (db level), the feed opening is not big, and the dust pollution is less;

9. Sand making machine is lubricated by thin oil, the equipment life is longer.

Working Principle

The material enters into the feeding port from the upper part of the machine, and is divided into two parts by the material dividing cone, one part falls down from the middle, and falls vertically into the high-speed rotating impeller, and is accelerated to the linear speed of 60-80m/s under the action of high-speed centrifugal force, and then thrown out, and then it will hit the material curtain formed by another part of the material, and then carry out the initial crushing of "stone hitting iron", and the material will be hit into the peripheral guard plate around the crushing cavity for the secondary crushing. In this way, the material is crushed several times in the crushing chamber, which effectively improves the production efficiency.

Application Area

JYS Vertical Shaft Impact Crusher is mainly used in the following fields:

1. Building and road construction: the silica sand produced by JYS Vertical Shaft Impact Crusher is mainly used in building and road construction, which can meet the requirements of building sand.

2. Mining field: In the mining field, JYS Vertical Shaft Impact Crusher can be used for ore crushing and screening, crushing the ore into small particles, which is convenient for subsequent processing and refining. At the same time, it can also be used in the field of medium and fine crushing of cement, refractory materials, bauxite clinker, silicon carbide, glass raw materials and other kinds of high hardness and ultra-hard materials.

3. Industrial field: In the industrial field, JYS Vertical Shaft Impact Crusher can be used in the production of glass quartz sand and other high-purity materials, as well as various metallurgical slag processing.

In general, impact crusher is widely used in building materials, metallurgy, chemical industry, mining, cement, abrasives and other industries, but mainly used as mechanism sand production equipment and ore fine crusher.

Technical Parameter
