Product Introduction

The new JY6X impact crusher produced by Shanghai Jianye is a new type of impact crusher improved on the basis of PCL and JYS sand making machine by absorbing foreign advanced sand making technology and combining more than ten years of experience in impact crusher design and manufacturing. Compared with the old impact equipment, its production capacity and finished product rate have been greatly improved. There are two feeding methods: central feeding and blanking, which can be widely used in machine-made sand processing and stone shaping.

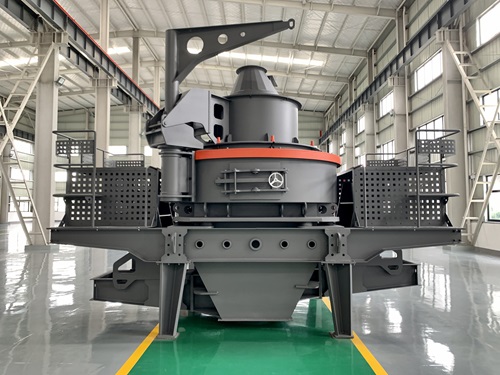

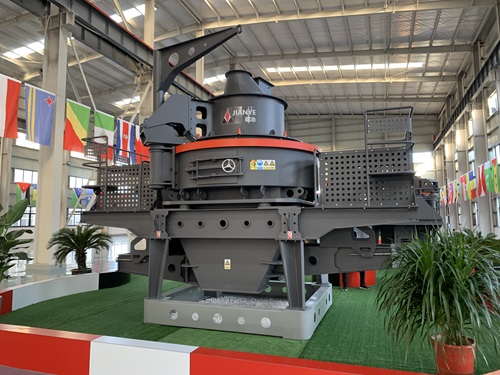

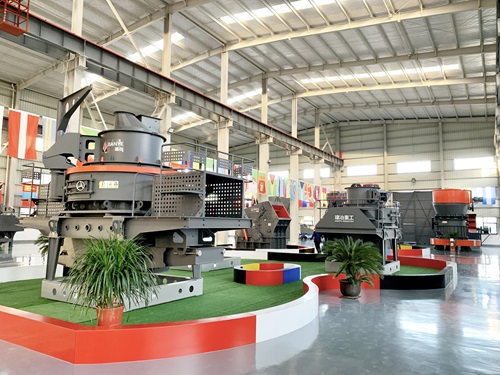

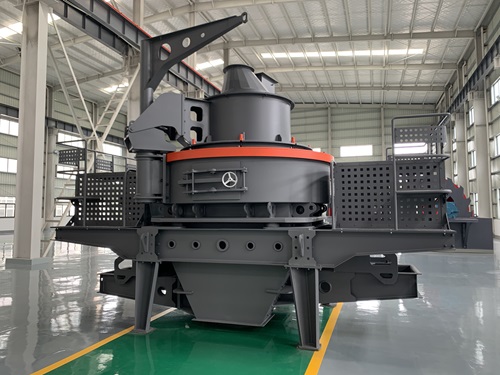

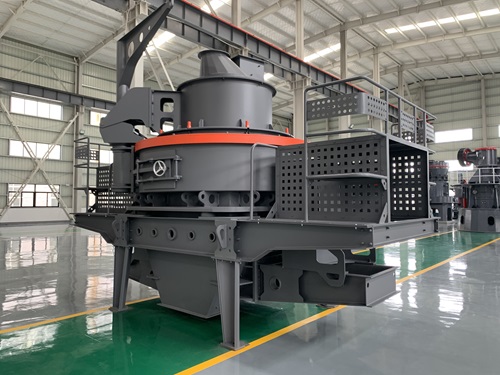

Equipment Photos

Advantages

1. large processing capacity, high output ---- Compared with similar sand making equipment, the output of 6X series impact crusher is 30% higher.

2. stable performance ---- Compared with similar domestic sand making equipment, 6X series impact crusher has low maintenance frequency and short time.

3. low energy consumption ---- Compared with similar sand making equipment in China, the energy consumption of 6X series impact crusher is 25% lower.

4. low consumption of wearing parts ------ More reasonable impact angle and impact speed and high resistance material hammer head, directly reduce the cost of 6X series impact crusher sand production, and effectively improve the profitability of sand production.

5. the finished product good particle size ----- Finished product is six-sided polygon, grade with reasonable, shaping effect is remarkable, especially suitable for mechanism sand and stone shaping.

Working Principle

Centre feeding: The material falls into the cascade feeding device, enters the high-speed rotor through the centre feeding hole of the 6X impact crusher and is fully accelerated and thrown out through the launching port. Firstly, it impacts with a part of the material falling freely after rebound, then it impacts to the vortex lining in the surrounding vortex cavity together, and then it is rebounded to the top of the crushing cavity, and then it is deflected to the downward movement to impact with the material launching from the impeller channel to form a continuous material curtain. After that, it is discharged through the lower discharge opening.

Centre feed with the ring waterfall feeding: the material falls into the waterfall feeding device, and then falls through the ring hole, is divided into two shares by the bulk tray. One stream enters the high-speed rotating impeller through the centre feeding hole, and the other stream falls down from the powder disc around; the materials entering the impeller are accelerated rapidly and thrown out at high speed in the impeller, firstly, they are impacted and crushed with another part of the materials falling freely around the scattering disc, and then impacted together with the vortex lining in the vortex cavity around, forming a continuous material curtain, and then discharged through the lower discharge port.

Application Area

1. Mining industry: Impact crusher is widely used in the mining industry, such as gold, copper, iron ore and other mines of ore crushing. It can efficiently crush ores of various hardness to meet the needs of mineral processing and mining.

2. Construction industry: Impact crusher in the construction industry is mainly used in the production and crushing of concrete aggregates. It can crush large pieces of stone and concrete into the required particle size, improving construction efficiency and quality.

3. Water conservancy and hydropower projects:Impact crusher can be used for sand and stone production and preparation in water conservancy and hydropower projects. It can crush large stones and river pebbles into the required particle size to meet the needs of the project.

4. Road construction: Impact crusher can be used in road construction of gravel processing and pavement laying. It can crush large pieces of stone into the required particle size, improving construction efficiency and quality.

5. Other areas: impact crusher can also be used in glass raw materials, ceramic raw materials, refractory materials and other fields. It can crush materials of various hardness efficiently to meet the needs of different fields.

Technical specifications
