Product Introduction

Cone mobile crushing station adopts vehicle traction, crushing and screening equipment integration, the whole machine drive, can be moved to the site of the material to be crushed, eliminating the material conveying link, eliminating the obstacles arising from the poor crushing site. At present, it has been widely used in construction waste, sand and stone quarry, mining and other fields, can be coarse crushing, medium crushing, fine crushing processing. The core crushing equipment is cone crusher. Cone crusher can be used with other related equipment to form a multi-stage crushing and screening system, the specific use of several crushing and screening system should be determined according to the user's needs.

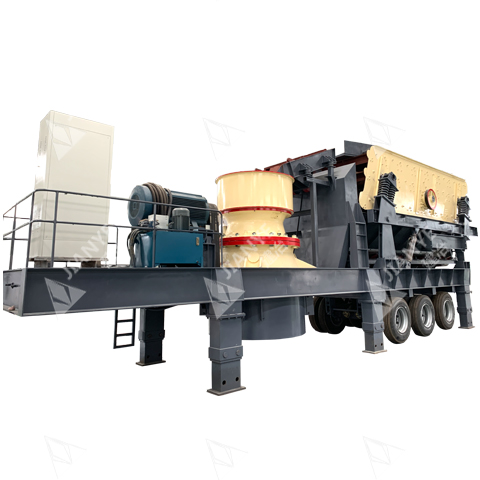

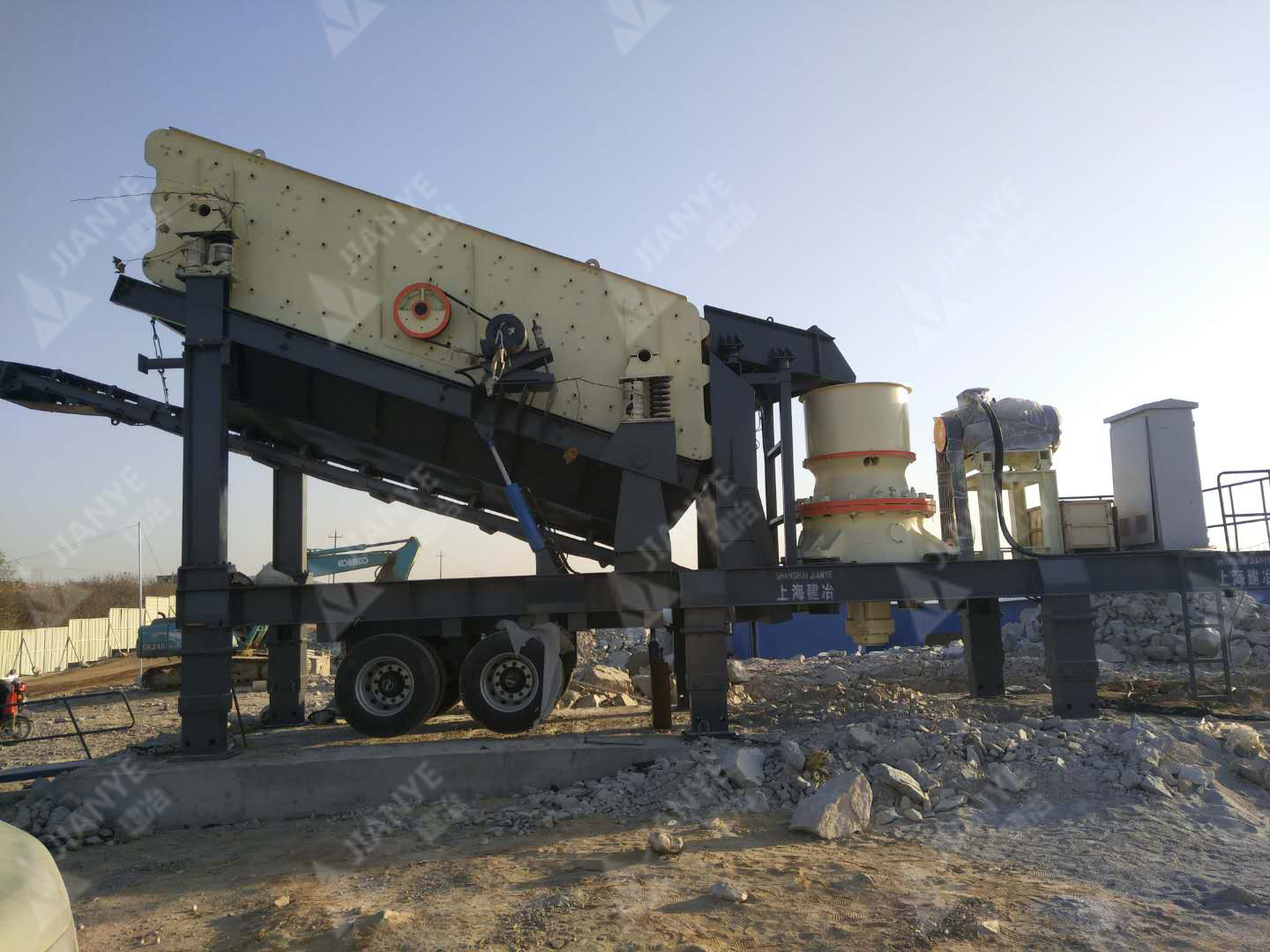

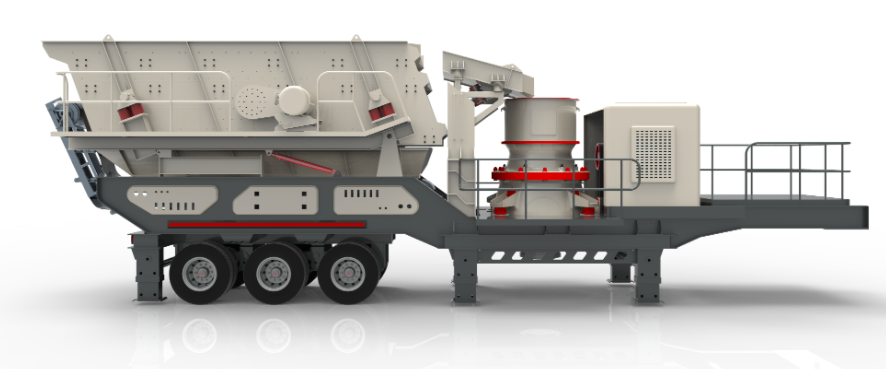

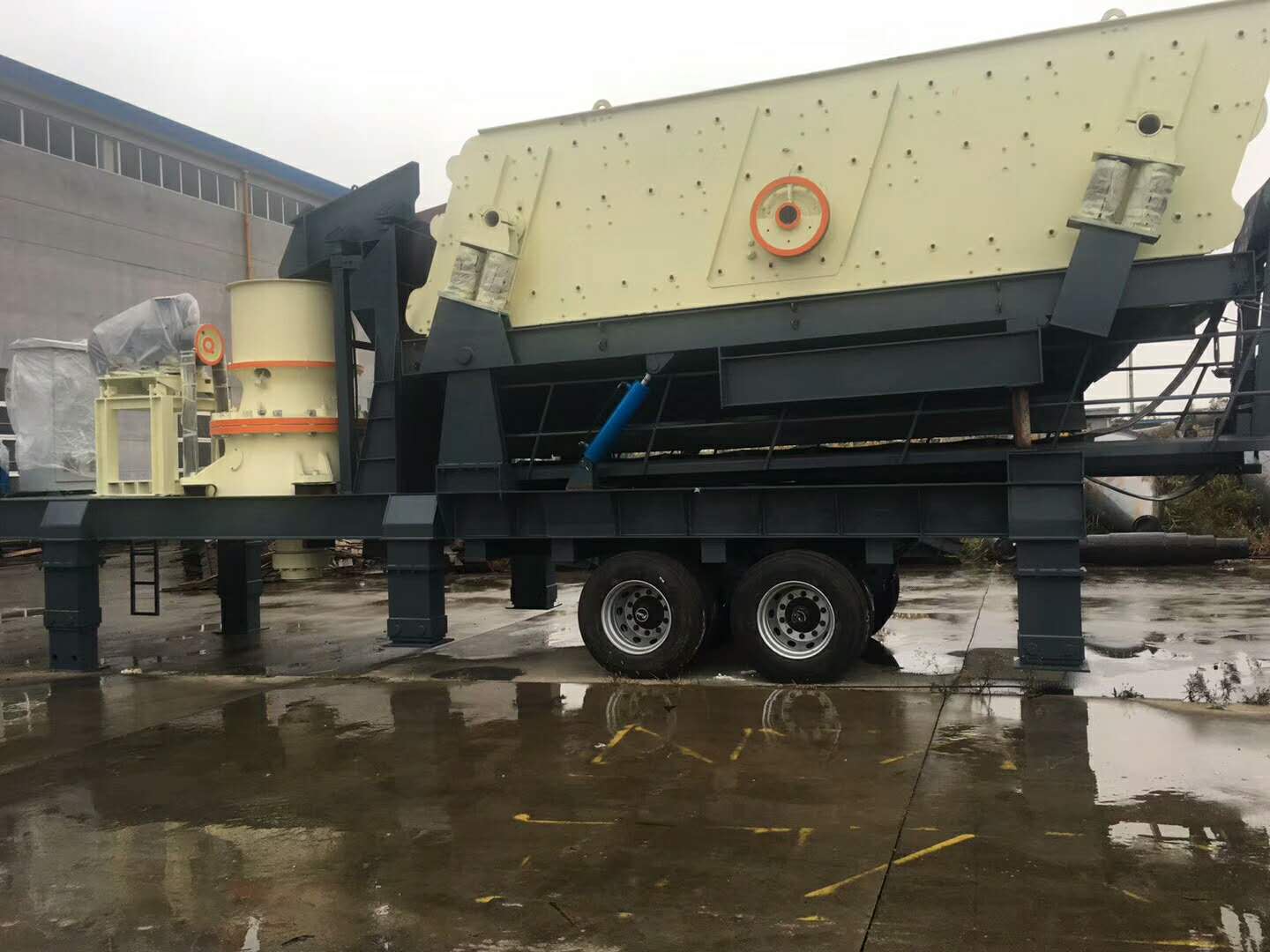

Photos

Advantages

1. The chassis of the unit vehicle is higher
The width of the body is less than the operation of semi-trailer, turning radius is small, easy to drive in the rugged and poor road environment in the crushing site, more conducive to enter the construction area, eliminating the crushing of the cumbersome steel frame structure, the construction of the foundation, saving lots of time.

2. Integration of unit equipment installation
Strong overall coordination, reasonable and compact layout, saving time and space for on-site construction, improving flexibility, while eliminating a large number of site infrastructure, greatly reducing investment costs.

3. The configuration of the cone crusher can properly play the function of fine crushing, but also can directly output the finished products of sand and gravel materials of medium and fine grain size, comprehensive functions, directly reducing the cost of transporting materials. In addition, the lengthening unit can also directly send the crushed materials into the transfer truck box bucket, which is convenient for timely transport.

4. Cone crusher adopts static pressure principle, after the second vibration isolation, the equipment vibration is small, more conducive to the implementation of the installation.

Working Principle

When the cone mobile crushing station is in operation, the materials are evenly transported to the cone crusher through the feeder, and after preliminary crushing by the cone crusher, it will form a closed-circuit system through the circular vibrating screen to realise the cyclic crushing of the materials, and the finished products will be output by the conveyor to carry out the continuous crushing operation. The cone mobile crushing plant can remove the circular vibrating screen according to the actual production needs, so as to achieve the preliminary crushing of materials directly, and the operation is convenient and flexible when used together with other crushing equipment.

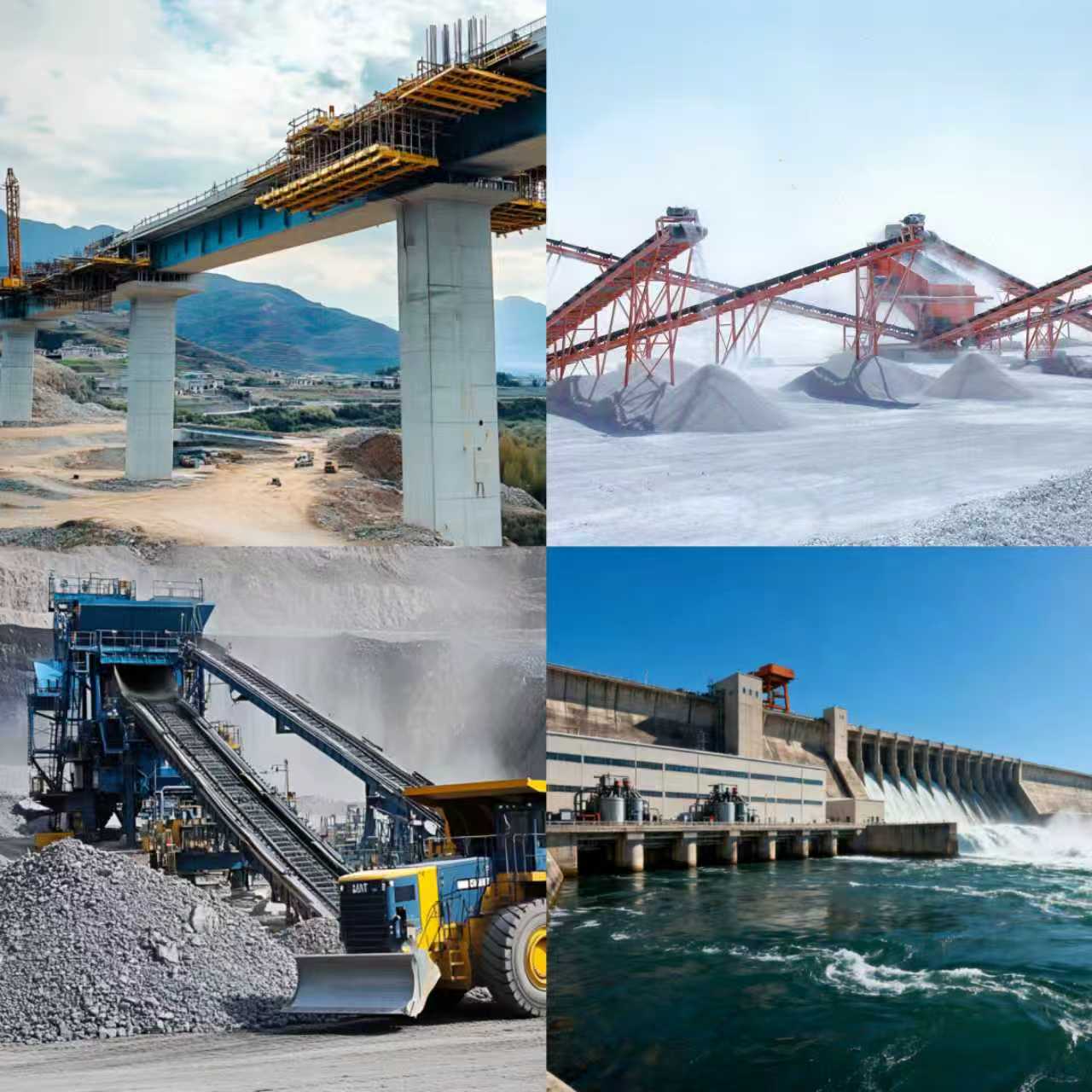

Application Area

Recycling of mines, coal mines, rubbish and construction waste; site operations such as earthworks, urban infrastructure, roads or construction sites. Processing of topsoil and many other materials; separation of cohesive cohesive aggregates; construction and demolition industry; screening after crushing; quarrying industry. Artificial sand making of river pebbles, mountain rocks (limestone, granite, basalt, gabbro, andesite, etc.), ore tailings, stone chips.

Technical Parameter
