Production Introduction

The JY series cone crusher integrates advanced crushing technology from both domestic and international sources, with a more reasonable internal structure design and high crushing efficiency. It can be widely used in the metallurgical industry, building materials industry, road construction industry, chemical industry, and silicate industry.

The JY series cone crusher has three types of chamber types: coarse crushing (C), medium crushing (M), and fine crushing (SH). Users can choose different chamber types according to their needs to achieve better crushing effects.

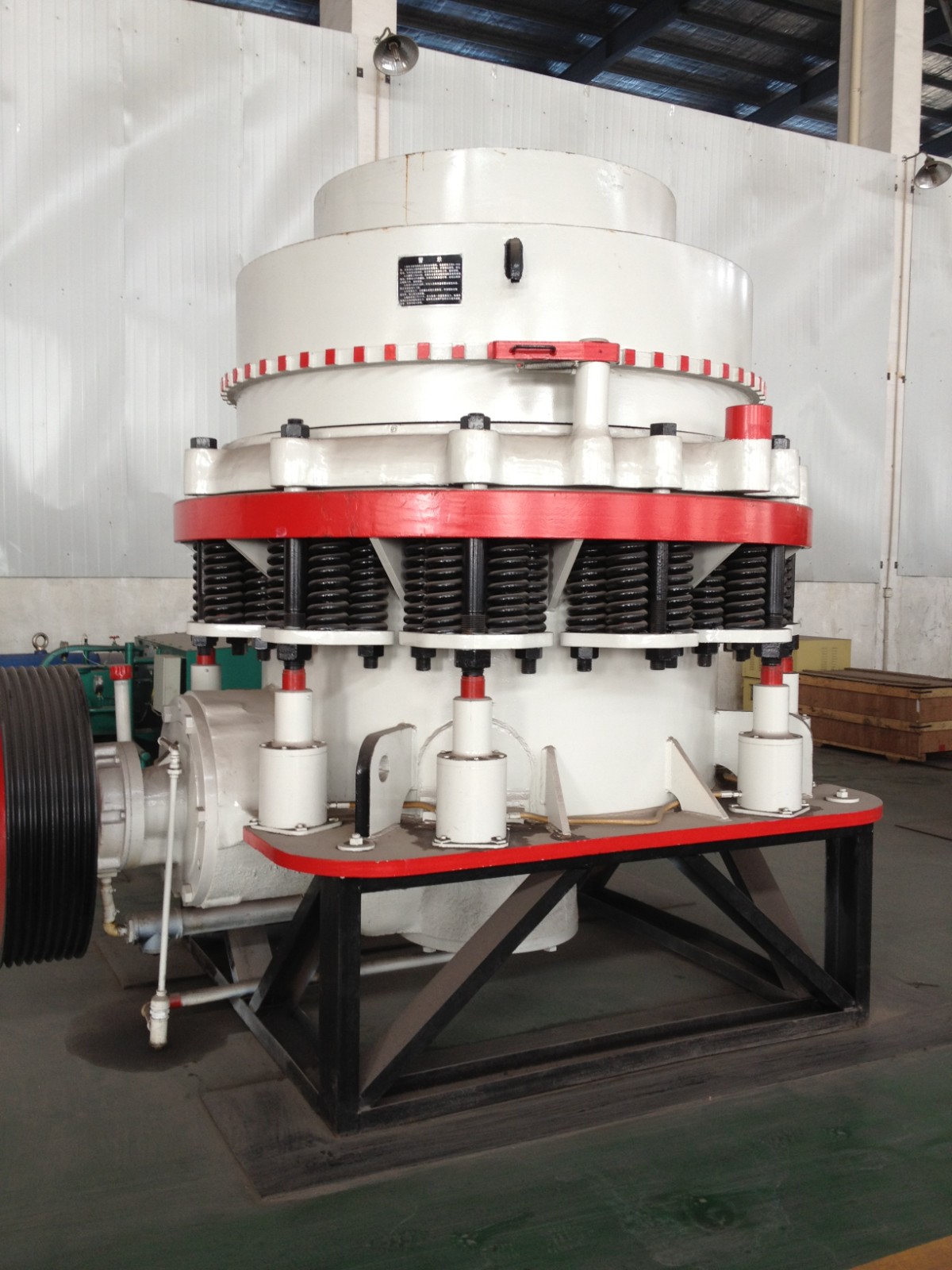

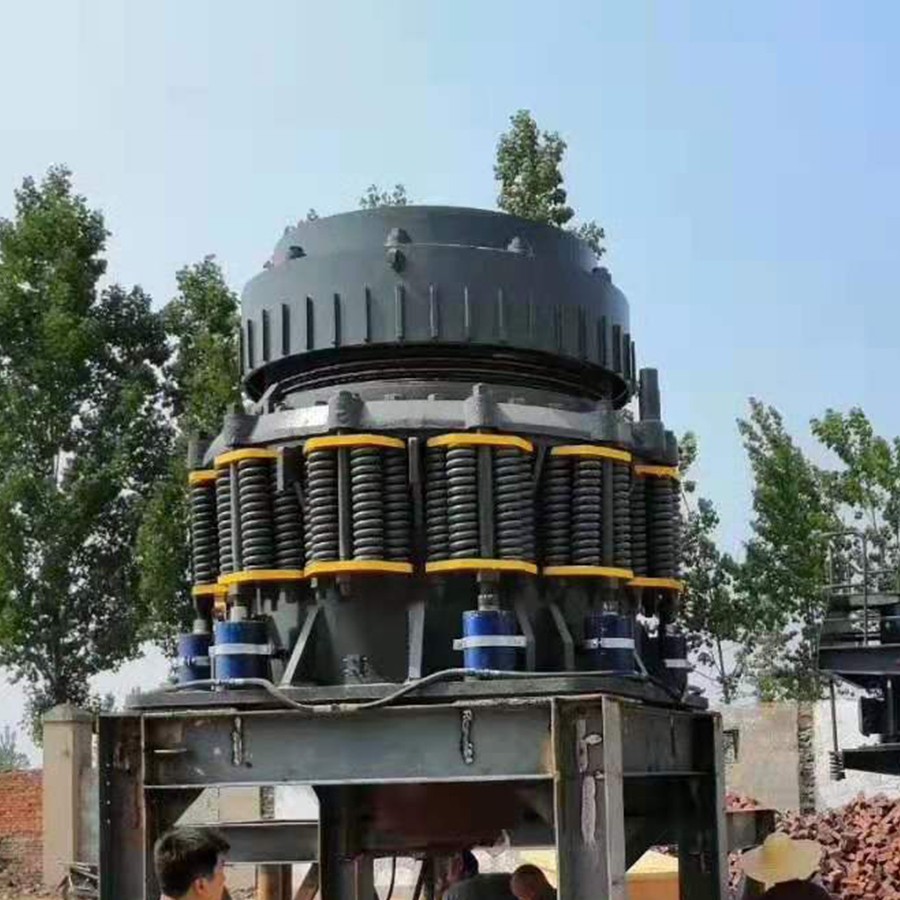

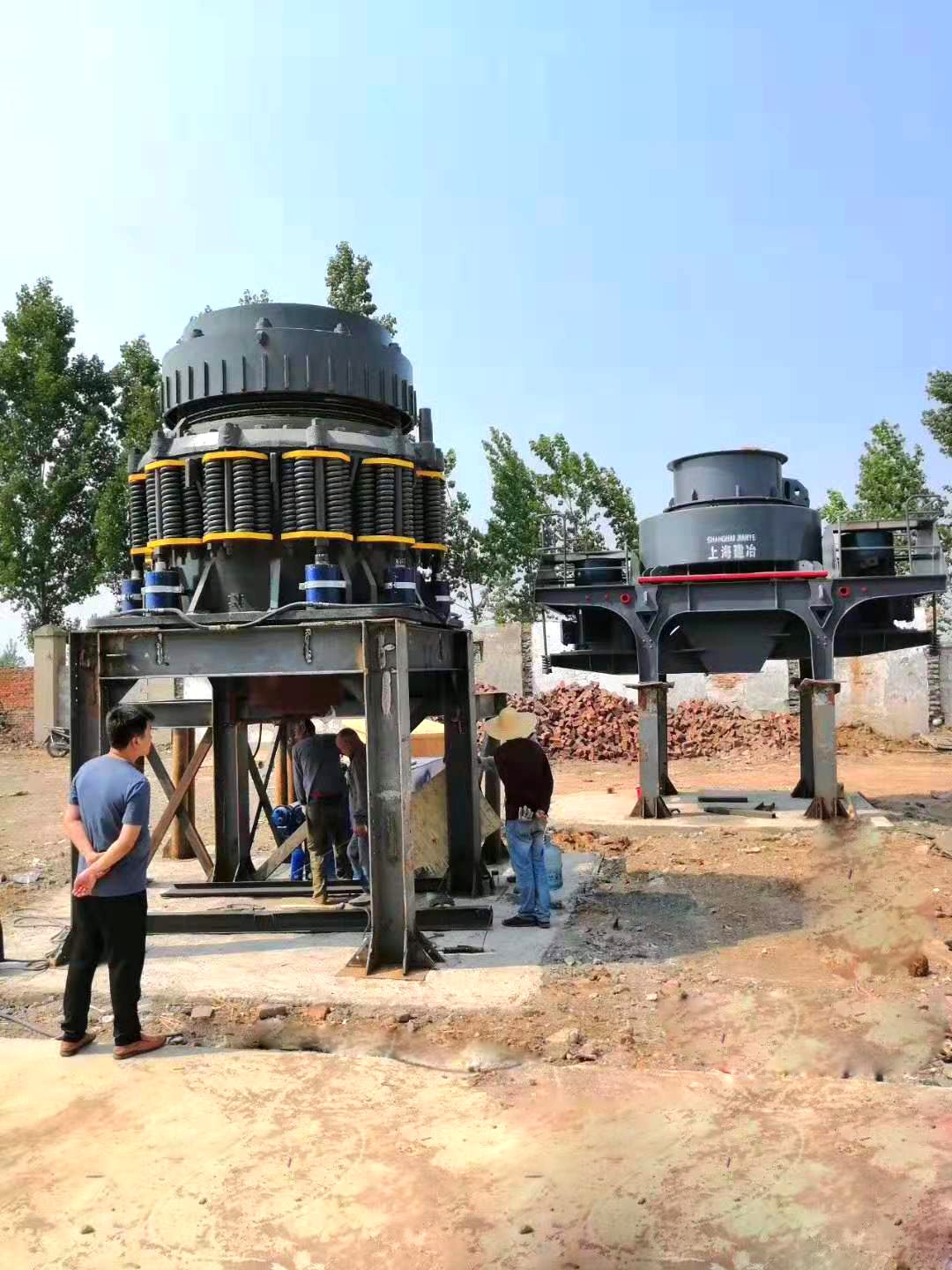

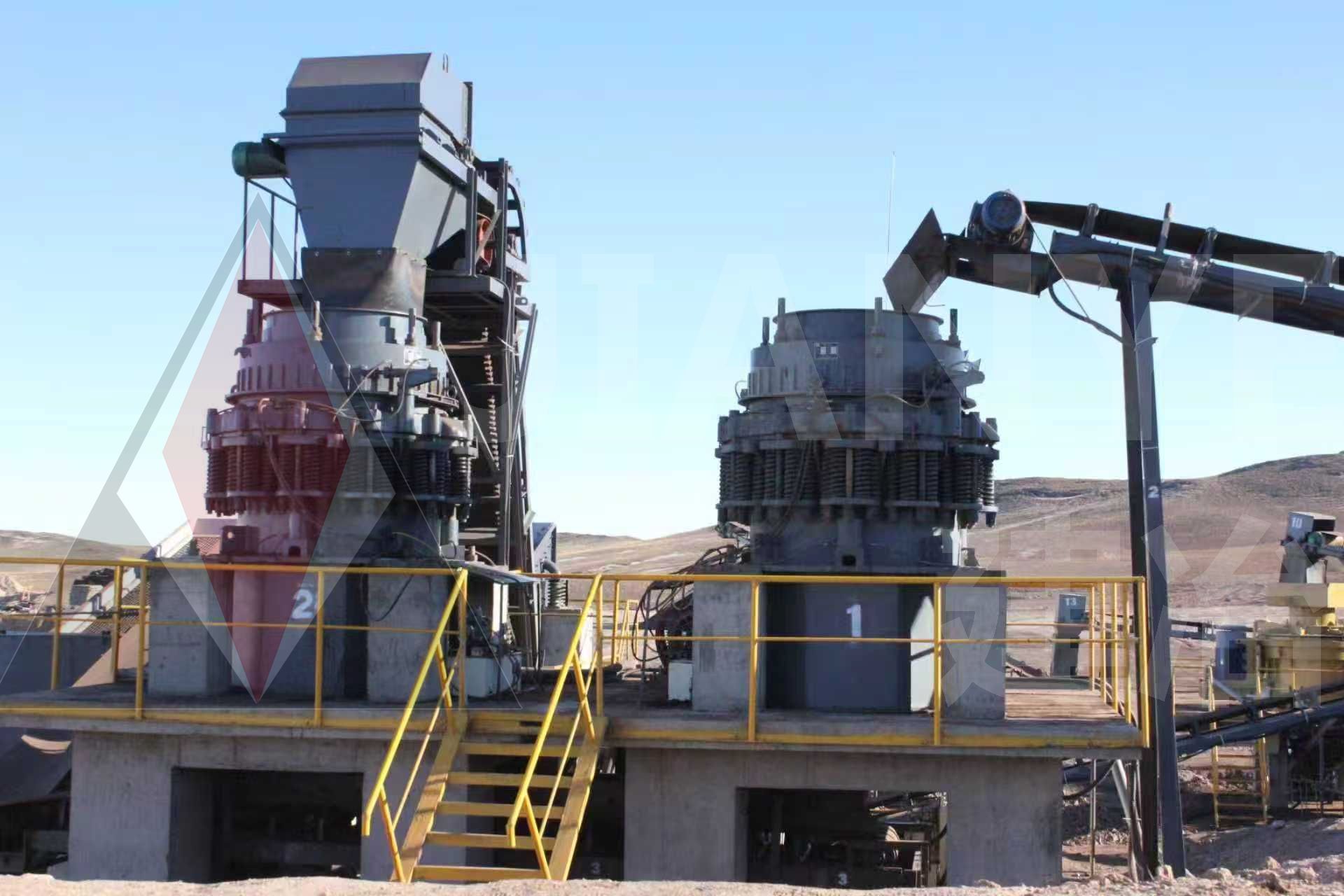

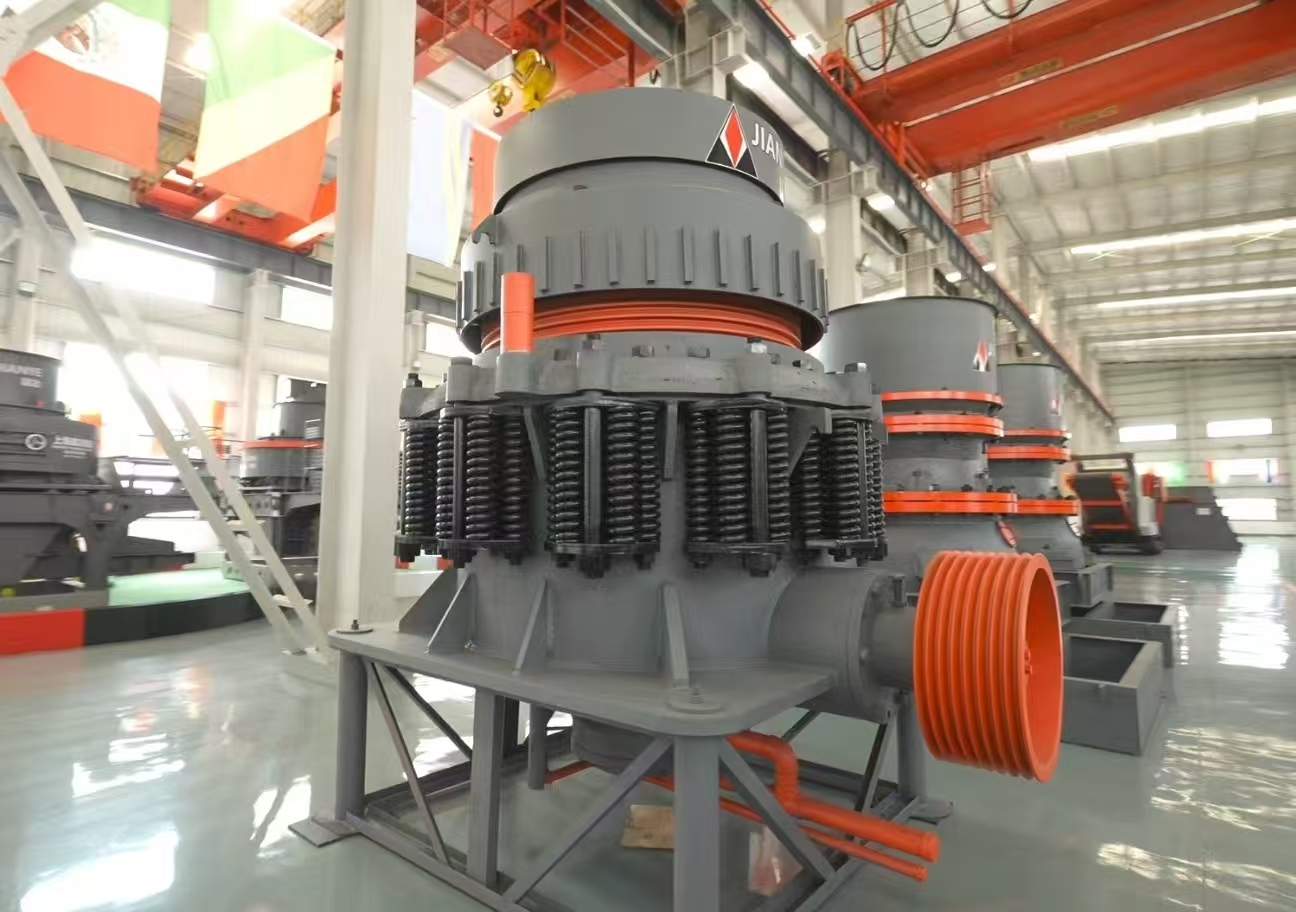

 Photos

Advantages

1. Simple and convenient operation and maintenance: Its structural design is reasonable, easy to operate and maintain, and the vulnerable parts are made of high-strength wear-resistant materials, with a long service life.

2. Uniform particle size of the finished product: Advanced crushing technology is used to achieve uniform particle size of the crushed material, reducing cyclic load.

3. Overload protection device: Equipped with overload protection device, it can allow foreign objects and iron blocks to pass through the crushing chamber without harming the crusher.

4. Widely applicable: It can be widely used in industries such as mining crushing, sand and gravel production, industrial solid waste treatment of tailings, slag and gangue, and construction waste treatment.

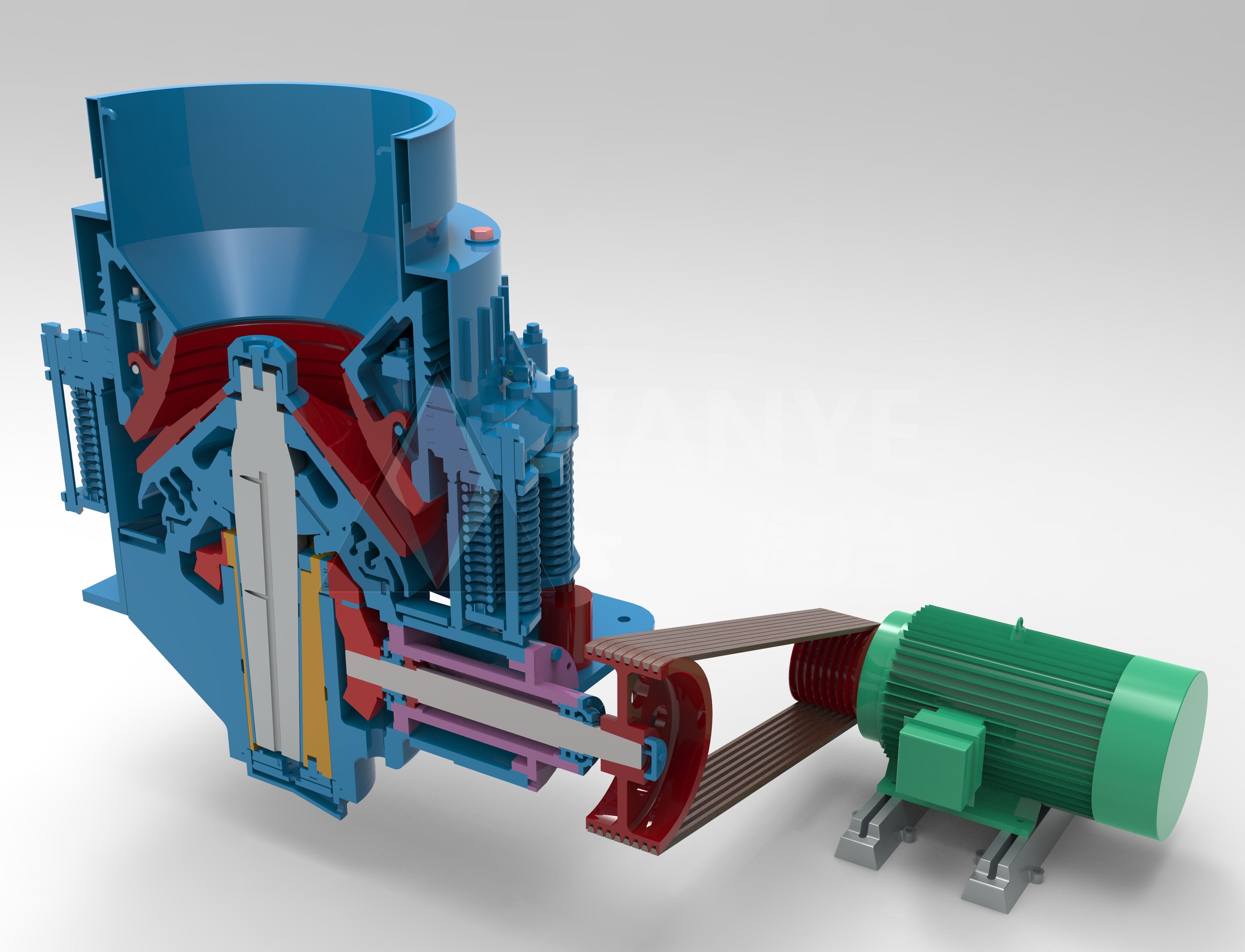

Working Principle

JY series cone crusher adopts advanced foreign technologies and processes, with novel and reasonable structure design and high crushing efficiency. It can be widely applied in the metallurgical industry, building materials industry, road construction industry, chemical industry and silicate industry. When working, the rotation of the motor through the belt pulley or coupling, the transmission shaft of the cone crusher and the cone part of the cone crusher make a swing motion around a fixed point under the forced movement of the eccentric sleeve. Thus, the crushing wall of the crushing cone approaches and leaves the surface of the mortar wall fixed on the adjusting sleeve from time to time, so that the ore is continuously impacted, extruded and bent in the crushing cavity to achieve the crushing of the ore. The motor drives the eccentric sleeve to rotate through bevel gears, making the crushing cone perform a swing motion. The crushing cone approaches and leaves the fixed cone from time to time to complete crushing and discharging. The connection between the support sleeve and the frame body is compressed by a spring. When uncrushable objects such as metal blocks fall into the crusher, the spring immediately undergoes compressive deformation to discharge the foreign matter, achieving insurance and preventing machine damage.

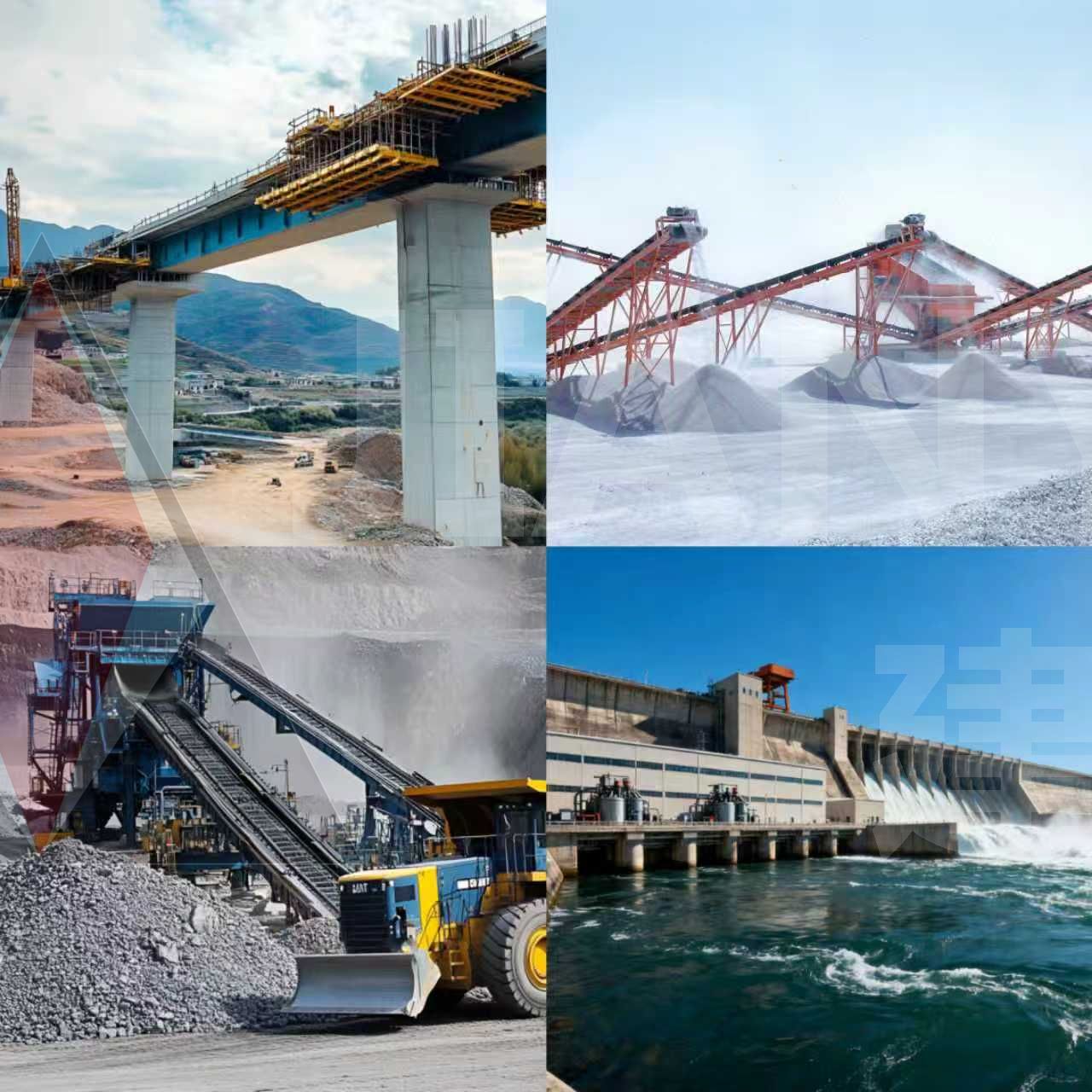

Application Area

1. Mining industry: For crushing various ores and rocks.

2. Aggregate production: To produce high-quality aggregates for construction.

3. Quarrying: In the processing of quarry materials.

4. Metallurgical industry: For treating metallurgical raw materials.

5. Building materials manufacturing: To handle raw materials in the production of building materials.

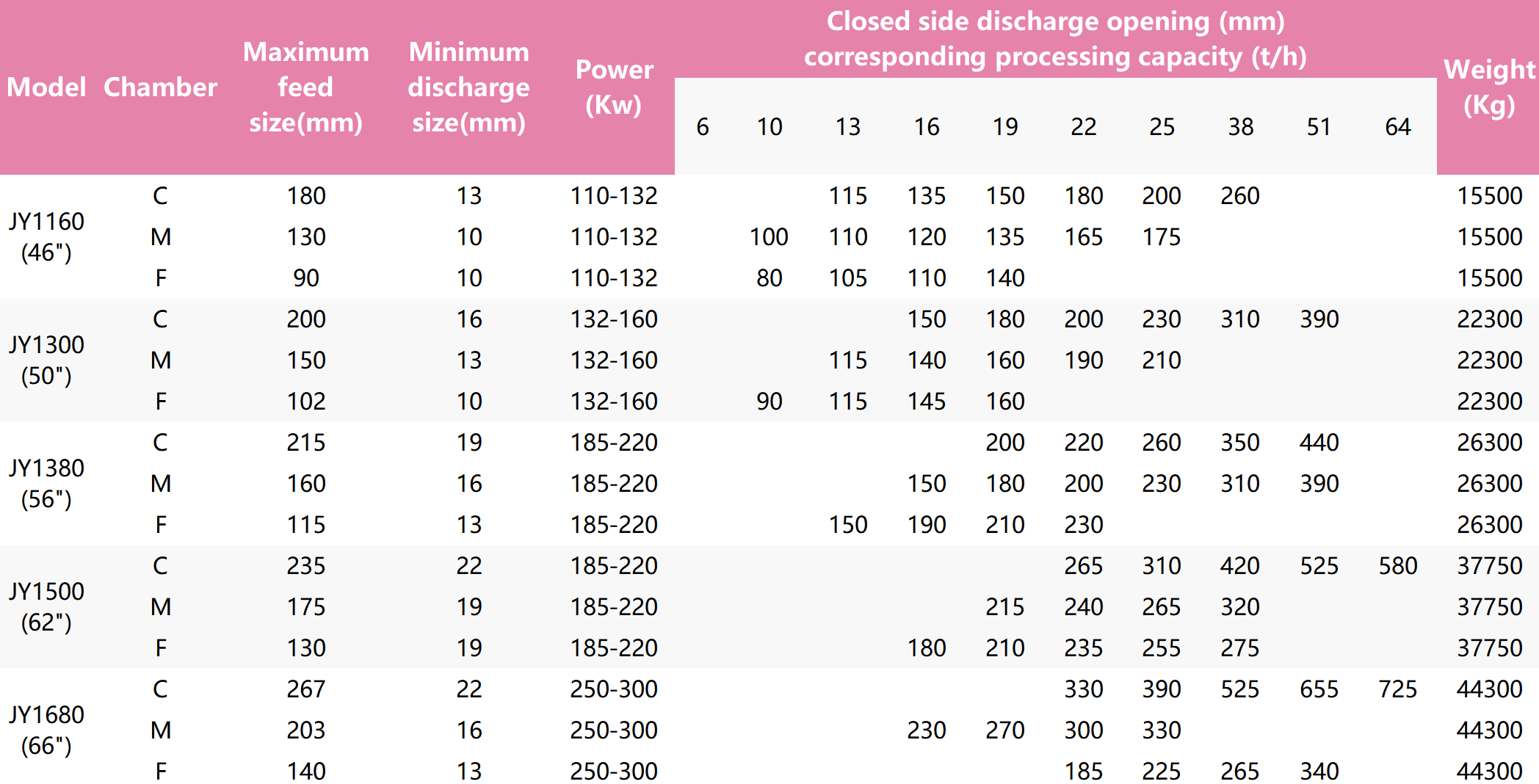

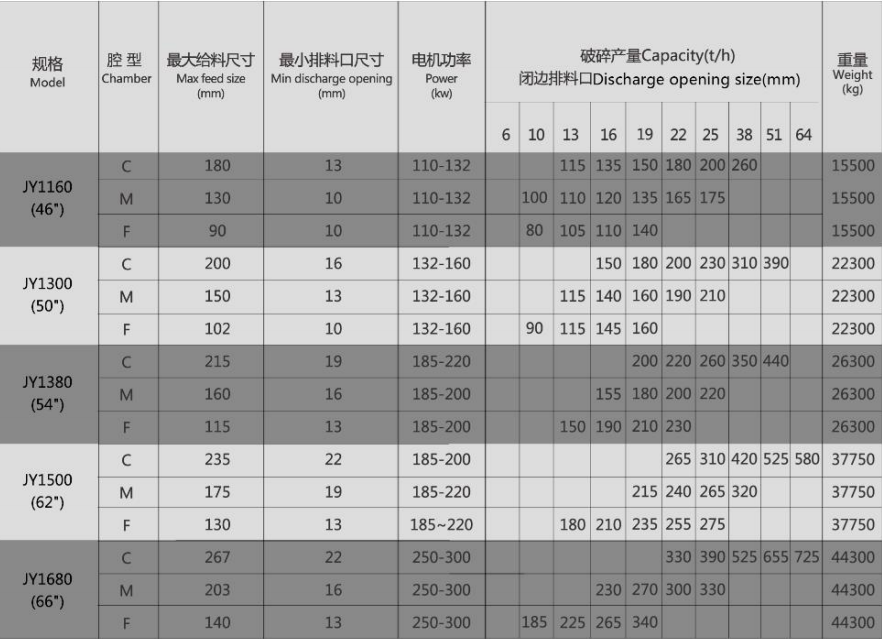

Technical Parameter
