Applicable materials:Various types of ores, such as granite, basalt, iron ore, limestone, etc.
Product Introduction
The crawler-type cone mobile crushing station, also known as the tracked cone mobile crushing station. It is a highly efficient and flexible crushing equipment. It is equipped with advanced cone crusher technology, which can crush various hard materials with excellent crushing performance.
This mobile crushing station features a crawler chassis, enabling it to move freely and easily on different terrains, reaching various work sites quickly and conveniently. It offers great mobility and adaptability, suitable for a wide range of applications in the mining, construction, and quarrying industries.
The cone crusher within the station is designed to ensure stable operation and high output. It can produce high-quality aggregates with precise particle size control. The entire system is intelligently controlled, allowing for easy operation and adjustment to meet different production requirements.

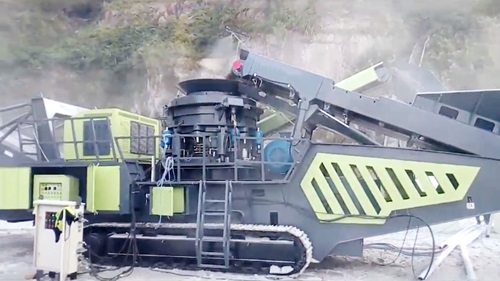

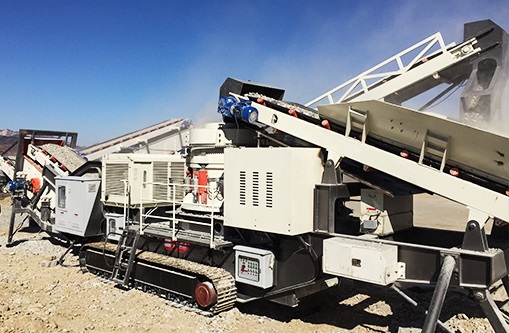

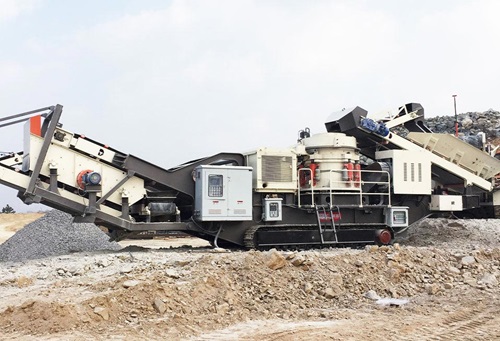

Photos

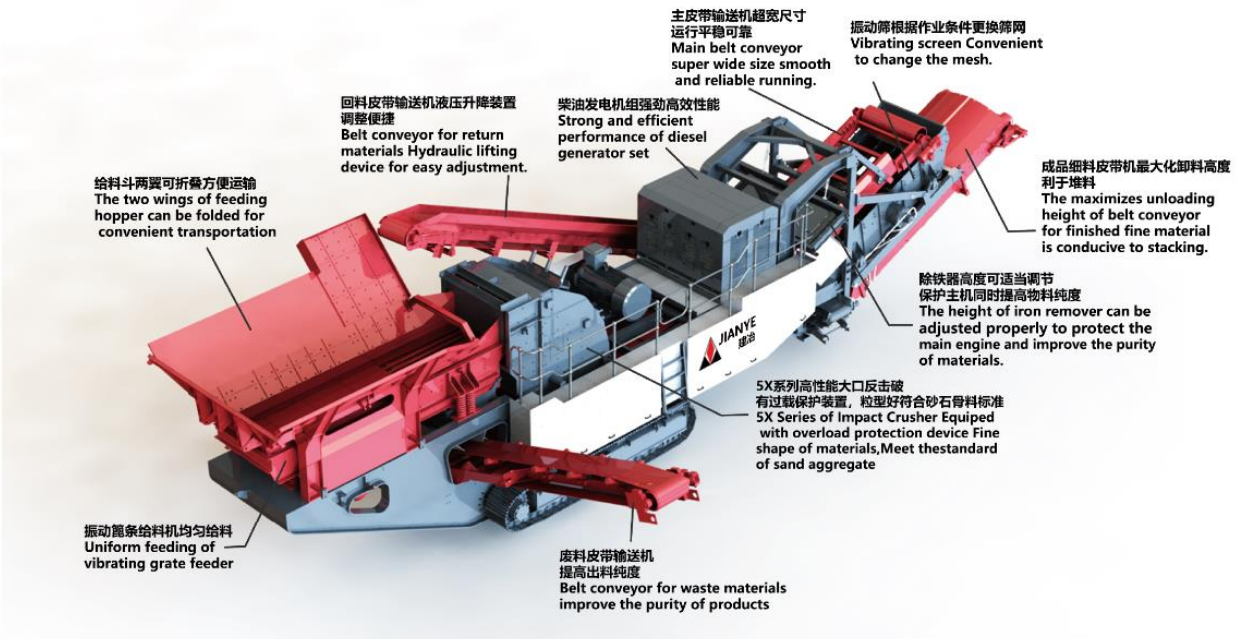

Advantages
The crawler cone crusher is a widely popular medium and fine crushing equipment, which is suitable for crushing various medium-hard and hard materials. The crawler mobile crushing station is a kind of high-efficiency crushing equipment. The crawler mobile crushing station can be divided into four major series: primary crushing, secondary crushing, tertiary crushing, and screening. The primary crushing host mainly uses a jaw crusher and is mainly used to handle large stones over 30 centimeters; the secondary crushing is used to process medium-sized stones below 30 centimeters, and the hosts mainly include impact crushers and cone crushers; the tertiary crushing is mainly used for sand making or processing fine aggregates, and the host mainly uses a sand making machine.
The screening station is an independent series. The number of layers and the size of the screen are selected according to the types and output of the materials discharged by the user. It adopts a self-propelled driving mode, with advanced technology and complete functions. The crawler mobile crushing station uses crawler walking and can realize in-situ steering. With standard configuration, it is extremely easy to drive the crusher onto the trailer and transport it to the operation site through wireless remote control.

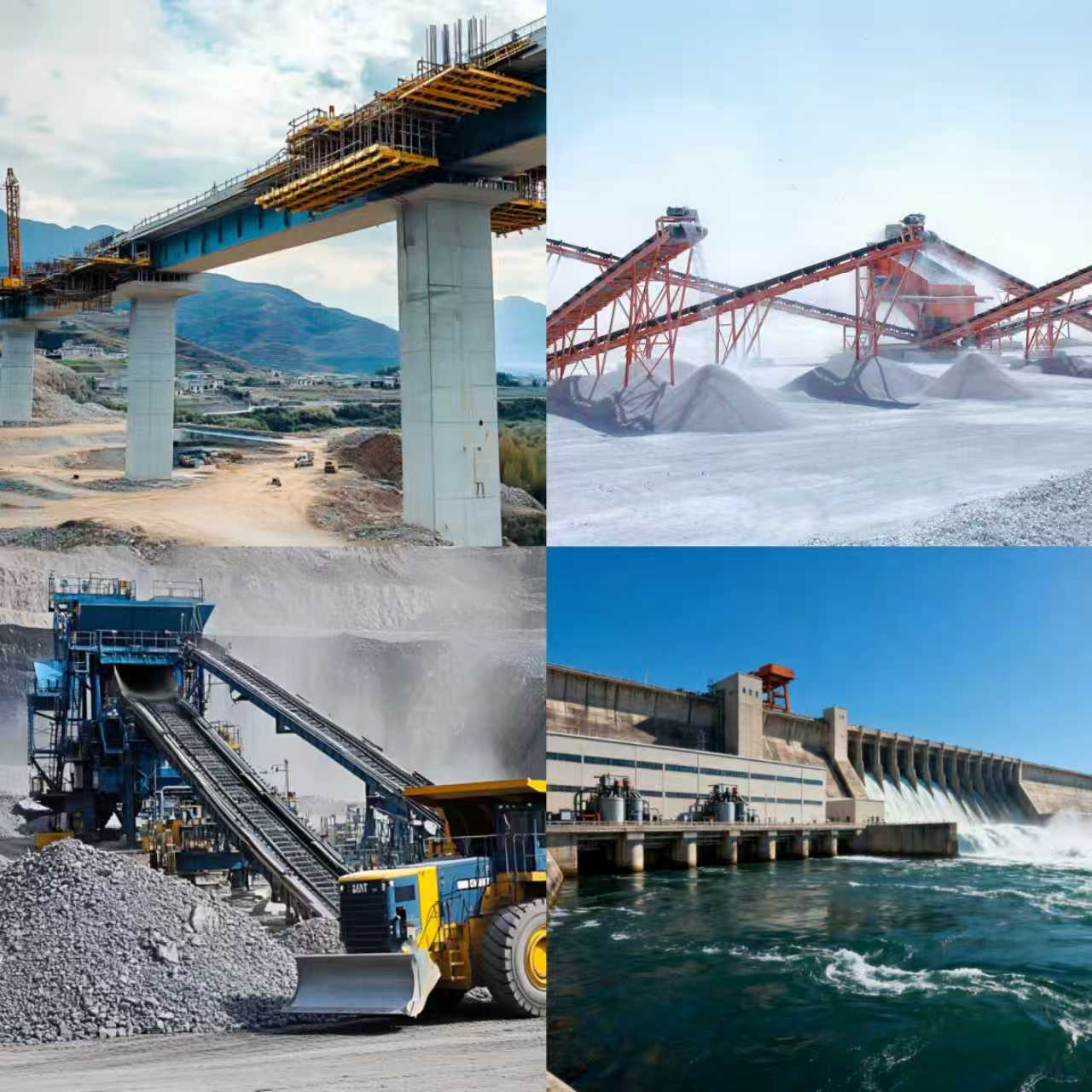

Application Area
The application fields of the crawler cone mobile crushing station include but are not limited to the following several kinds:
Construction industry: Crawler cone mobile crushing stations can be used to handle construction waste, crush cement blocks, bricks and other materials, and can also be used to prepare construction sand and gravel materials.
Mining industry: Crawler cone mobile crushing stations can be used for mining crushing and screening, suitable for crushing and screening various ores, such as granite, limestone, basalt, etc.
Road construction: Crawler cone mobile crushing stations can be used for road construction and maintenance, such as road crushing, asphalt concrete crushing, etc.
Water conservancy and hydropower engineering: Crawler cone mobile crushing stations can be used for the preparation of sand and gravel materials and concrete aggregates in hydropower station construction.
Environmental protection industry: Crawler cone mobile crushing stations can be used for environmental treatment, such as handling waste such as tires and plastics.
In summary, the tracked cone mobile crushing station has a wide range of application areas and can be customized according to different needs, providing customers with efficient, environmentally friendly, and energy-saving crushing solutions.
Working Principle
When moving, power is provided through the power system, which is controlled by the hydraulic and electric control system to drive the tracked chassis to move; During installation, the power system controls and drives hydraulic cylinders and other actions through the hydraulic and electrical control system, automatically completing equipment installation; During operation, the power system drives and controls the main engine and auxiliary equipment through the hydraulic electric control system. Materials enter the main engine mounted on the track chassis and frame from the silo for crushing or screening, and are discharged through an integrated belt conveyor.
Technical Parameter
Item | SS-938E69 | SS935PF1214 | SS1142HD98 | SS1142PF1315 | SS1142HD110 |
Vibrating feeder | ZSW-950×3800 | ZSW-950×3800 | ZSW-110×4200 | ZSW-110×4200 | ZSW-110×4200 |
Jaw crusher | PE600×900 | PF1214 | HD98 | PF1315 | HD110 |
Main belt conveyor | B800×8500mm | B800×8500mm | B1000×9000mm | B1000×9000mm | B1000×9000mm |
Main belt discharge height(mm) | 3200 | 3200 | 3500 | 3500 | 3500 |
Side belt conveyor model (optional) | B450×3000mm | B450×3200mm | B500×3500mm | B500×3500mm | B500×3500mm |
Side belt discharge height(mm) | 2800 | 2800 | 3100 | 3000 | 3100 |
Generator Set(kw) | 180 | 250 | 200 | 300 | 250 |
Conveying length(mm) | 12000 | 12000 | 13600 | 13600 | 14600 |
Conveying width(mm) | 3100 | 3100 | 3100 | 3100 | 3300 |
Conveying height(mm) | 3650 | 3650 | 4500 | 4500 | 5000 |
Weight(ton) | 43.5 | 50 | 59 | 59 | 67 |
Working Length(mm) | 12100 | 12100 | 13500 | 13500 | 15200 |
Working width(mm) | 3100 | 3100 | 3100 | 3100 | 3300 |
Working height(mm) | 4100 | 4100 | 5100 | 4800 | 5500 |
