Project Strength --Can be customised

Raw material: Quartzite

Capacity:300t/h

Feeding size: 500mm

Output size:0-7mm

 Project Introduction --Can be customised

Raw material: Quartzite

Production line type: Fixed

Finished product specifications: 0-7mm

Main Equipment configuration: Vibrating feeder ZSW6001500, Jaw crusher 900*1200，Impact crusher PF1520, Sand making machine JY6X1263, Vibraing screen 2YK2460, sand washing machine (optional)

Investment budget: Starting from 2.25 million

Details of the production line: The feed particle size is ≤500mm, and the discharged finished product is 0-7mm (different specifications can be added according to needs, and conveyor belts can be added).

 Project Details --Can be customised

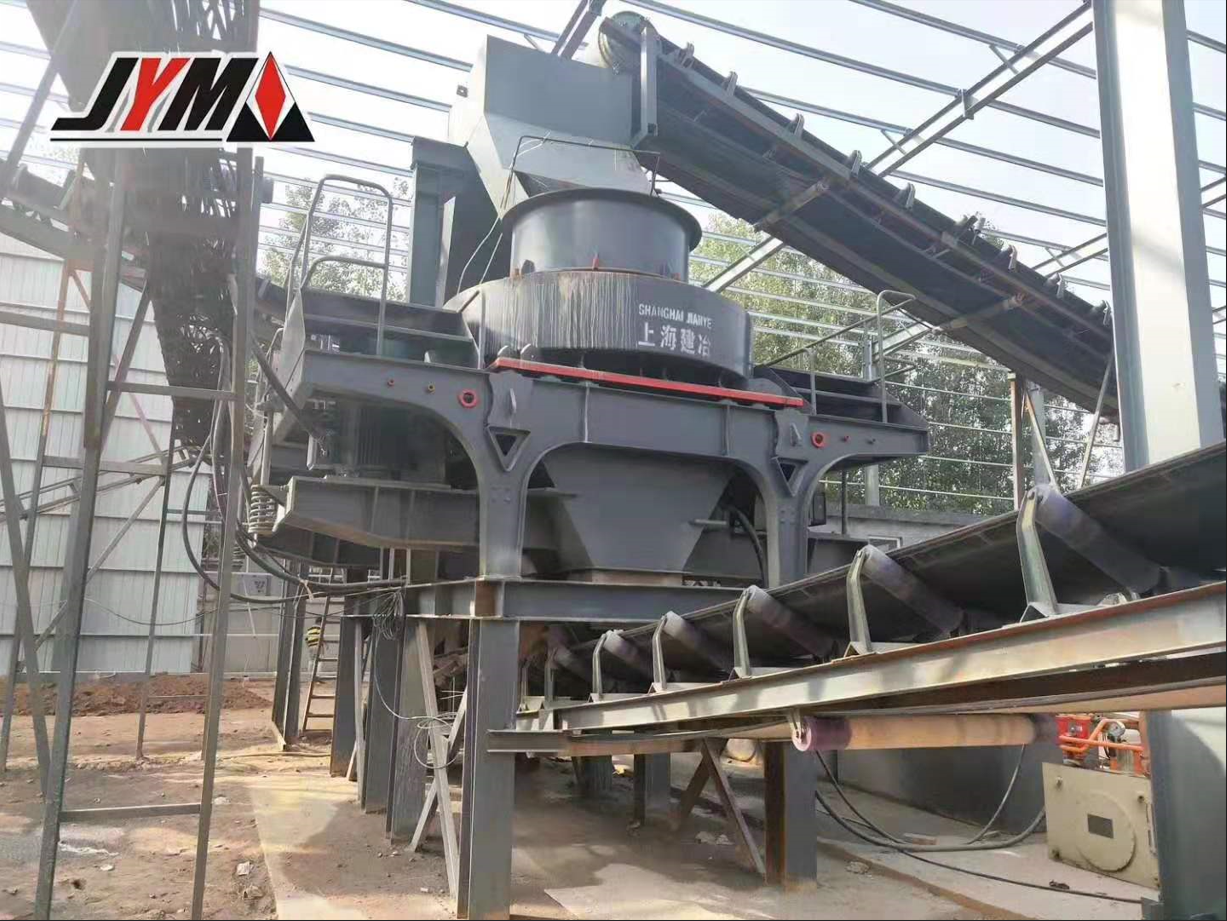

Advantages of the fixed quartzite sand making production line: The impact crusher has a large feed inlet when crushing quartzite, and the discharge particle size can be adjusted through the gap between the impact plate and the plate hammer, with automatic control of the discharge particle size, and has the function of shaping, which is conducive to the three-stage sand making process. The VSI sand making machine has a high cost-performance ratio, and the produced finished products are cube-shaped, with a smooth surface, continuous gradation, and compliant workability, fluidity, and water permeability.
