Product Introduction

Jianye sand making system adopts the international advanced artificial dry sand making technology, and chooses the process of sand making machine and air screening machine to produce high quality sand required for engineering and construction concrete, which is the most stable raw material production equipment for concrete producers, and at the same time, realises the company's production concept of "comprehensive environmental protection, green sand making and intelligent control".

The main process is through the efficient crushing and shaping of materials, aerodynamic screening and powder selection, and particle grading adjustment, so as to achieve the standards of mechanism sand required for engineering and construction concrete. The high-quality mechanism sand produced by Jianye sand making system has ideal particle shape and particle grading as well as controllable stone powder content. The concrete prepared by Jianye sand making system can obviously improve the compatibility of concrete, increase the strength of concrete and reduce the production cost. At present, it has been adopted by many central enterprises, state-owned enterprises and aggregate preparation enterprises, and its market share is among the top.

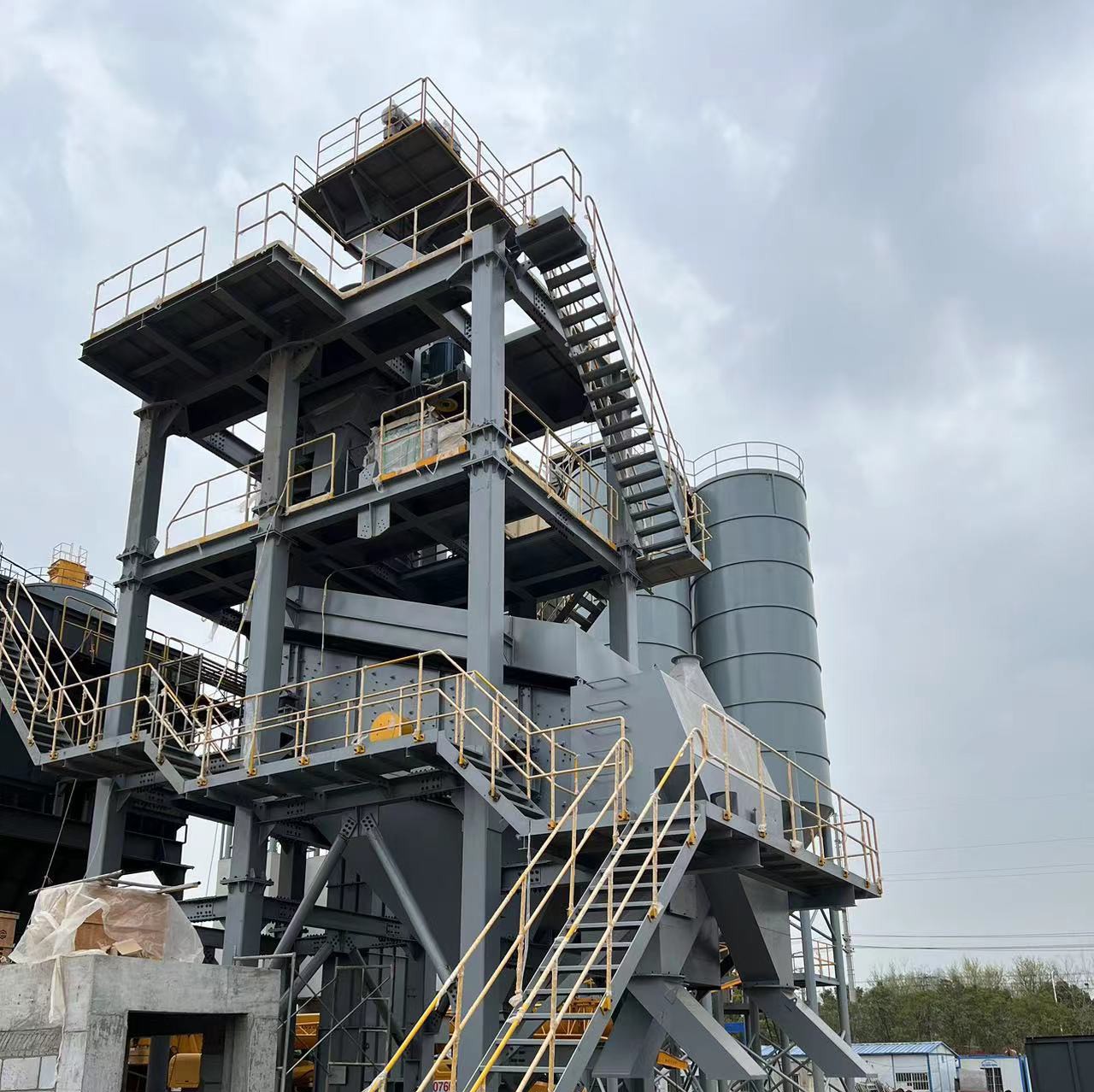

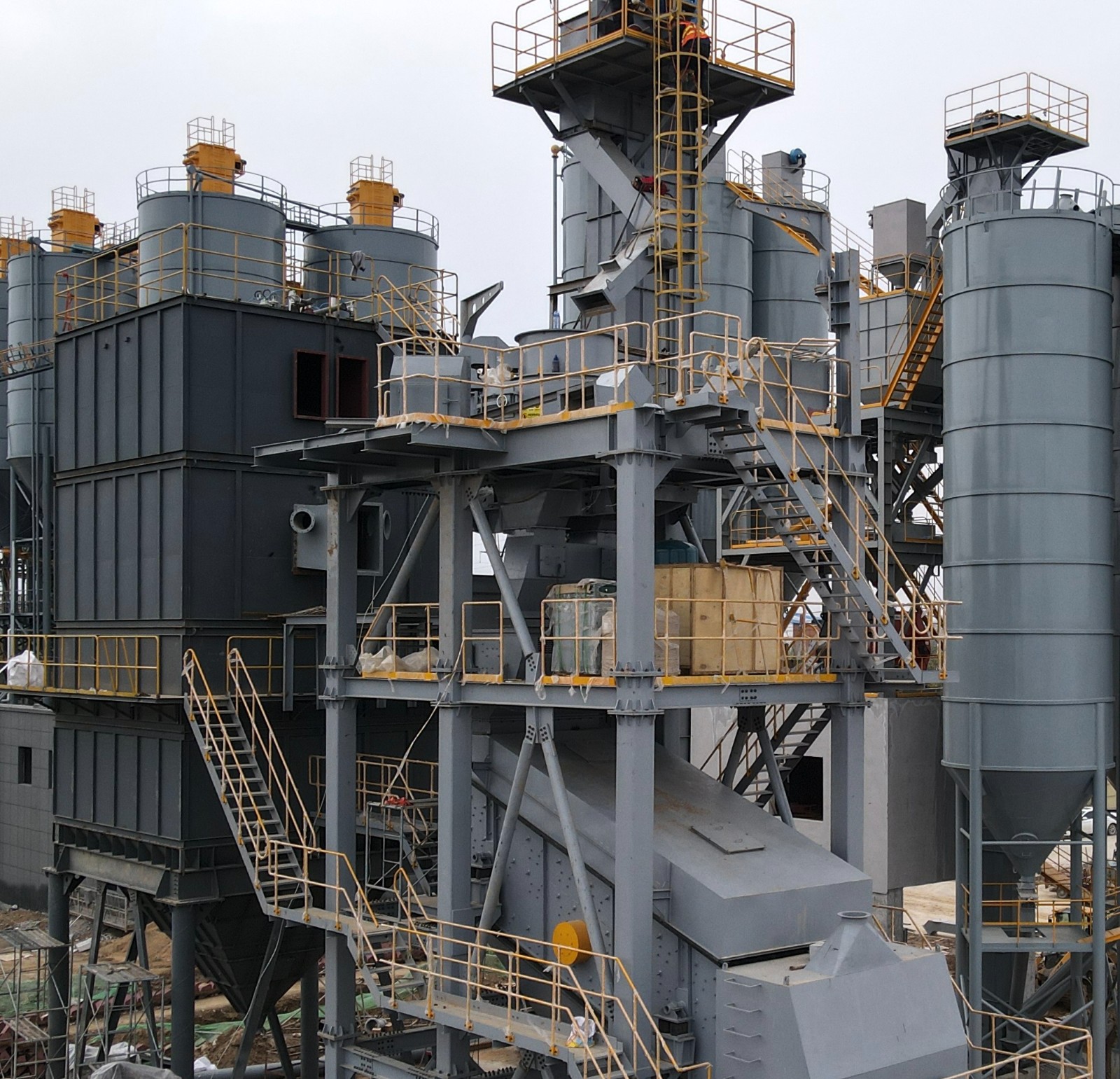

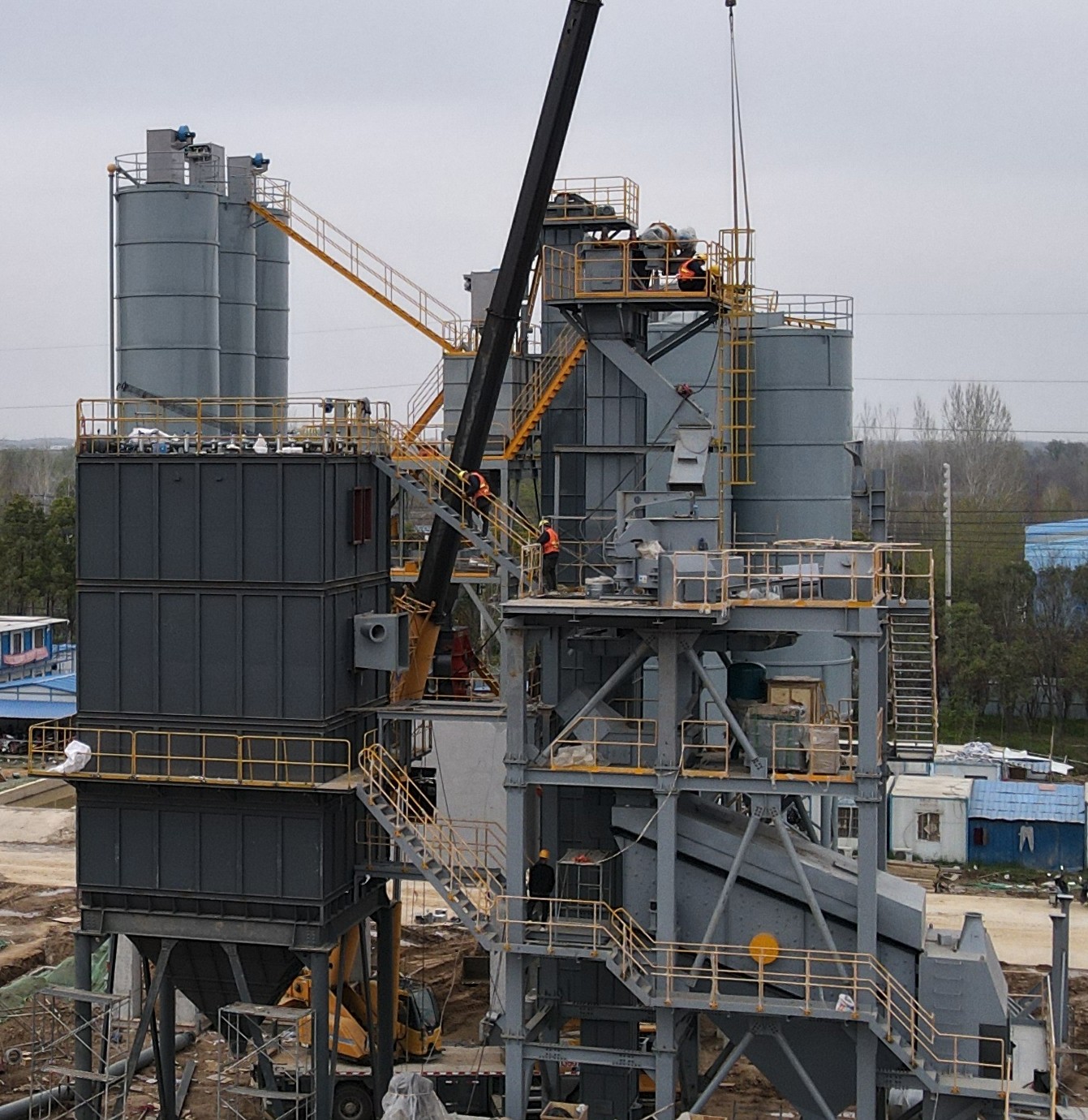

Photos

Advantages

1. Fully enclosed design, negative inlet pressure controls dust overflow, meeting environmental standards.

2. Reasonable process flow, excellent equipment performance, high efficiency and energy saving, large processing capacity.

3. The three main machines - vertical shaft crusher, horizontal screen and powder selector - have excellent performance, high efficiency and energy saving, and large processing capacity.

4. Compact overall structural design, small footprint, reduce investment cost.

5. Full-automatic control system, one key start and stop, easy to operate. Optional central control system communication connection and remote computer and mobile phone monitoring.

6. Stable product quality, suitable for large-scale industrial production, safe to use and easy to maintain.

Working Principle

Tower sand making production building is an efficient and environmentally friendly sand making equipment. Raw materials enter into the tower sand making building through elevator, and after multi-stage crushing, shaping, screening, dust removal and other treatments, finally get the finished sand with graded and rationalised, rounded grain shape, controllable powder content and controllable water content. The specific process is as follows:

1. Raw material enters the tower sand making building through elevator and is crushed into smaller particles by crusher.

2. The crushed raw material enters into the rectification equipment, and the raw material is rectified through impact, grinding and other ways to make its grain shape more rounded.

3. The shaped raw material enters into the screening equipment, according to the required size of the sand particles to be screened, the different particle size of the sand separated.

4. The screened sand enters the dust removal equipment to remove the dust and ensure the quality of the finished sand.

5. The qualified finished sand is sent out of the tower sand making building through conveying equipment to complete the whole sand making process.

Tower sand making building adopts dry production process, the whole sand making process does not need water, avoiding the waste of water resources and environmental pollution. At the same time, tower sand making building also has the advantages of high automation, large output and good environmental performance, which is one of the important equipments in modern sand making industry.

Application Area

Construction industry: in the construction field, tower sand making building is mainly used to produce mechanism sand, bedding material, asphalt concrete and cement concrete aggregate. It can provide high-quality sand and gravel aggregates to meet the different demands for sand and gravel materials in construction projects.

Mining industry: in the field of mining, tower sand making building is mainly used in the crushing and grinding process of ore. It can efficiently crush ores of various hardnesses and provide qualified raw materials for subsequent ore dressing and smelting.

Energy and environmental protection field: tower sand making building can also be applied in the field of waste treatment and resource recycling, such as processing tailings, waste stones and so on. Through crushing and screening, these wastes can be transformed into valuable resources, realising the resourceful use of wastes.

Chemical and metallurgical industry: In the chemical and metallurgical industry, tower sand making building can be used to crush all kinds of ores, slag and chemical raw materials. Through crushing and screening, raw materials with different particle sizes and qualities can be obtained to meet the subsequent processing and smelting requirements.

Technical Parameter
