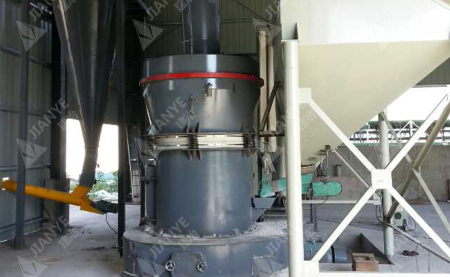

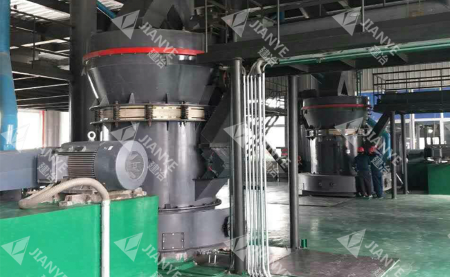

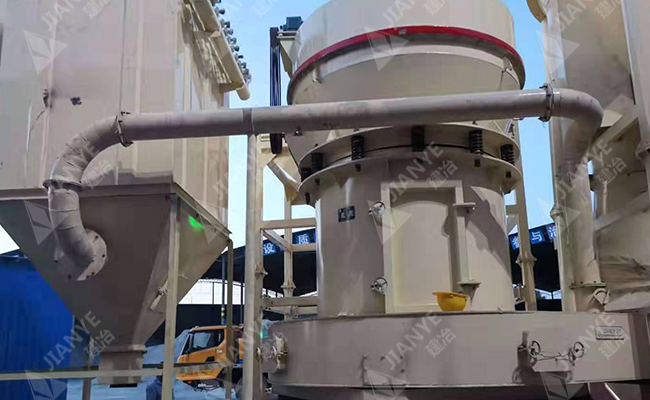

The user uses calcined petroleum coke to grind and make powder, and the finished coke powder is mainly used for processing graphite electrodes. In recent years, the price of coke powder rises, the user spends tens of millions of dollars to build a production line with an annual output of 60,000-100,000 tonnes of high-quality coke powder, which is the first phase of the project, using two sets of 6R4528 high-pressure grinding mills of Jianye Company.

Calcined petroleum coke is lighter in specific gravity and more difficult to grind than limestone, dolomite and gypsum, mainly because it is not easy to form a bedding layer. Therefore, the open-circuit grinding system designed by Jianye Company adopts weak wind power, and the air supply and induced air are coordinated to ensure that the standard coke powder can be sent to the powder collector through the analyser in a timely manner after grinding while ensuring the effective formation of the material layer, so it is more suitable for the research of petroleum coke and activated carbon, a kind of light material.

1. Plummer frame main shaft and grinding roller shaft at the upper end of the role of high-pressure springs, can automatically adjust the pressure of the grinding rollers for the grinding ring in the work, enhance the stability of the equipment, output increased by 10-20 per cent.

2. It can process materials with mode hardness more than 7, which increases the application range compared with traditional raymond machine;

3. Wide range of product size, the coarsest particle size up to 0.250 mm (60 mesh), the finest particle size up to 0.033 (425 mesh), and a small number of materials can be as fine as 0.013 mm (1000 mesh);

4. The dust removal effect fully meets the dust emission standards;

5. The analyser adopts frequency conversion speed control, which makes its performance more stable.

6. The grinding device adopts overlapping multi-stage sealing with good sealing performance.
