Productiong Introduction

SCM series super-micro grinder mill is our company according to 15 years of mill production experience, absorbing the advantages of foreign mill manufacturers, after full consideration, research, test 12 kinds of mills and horizontal ring hammer mill, through a number of studies and experiments and developed a high efficiency and low cost of super-micro powder processing equipment.
SCM series ultrafine powder mill is a kind of fine powder and ultrafine powder processing equipment, it is mainly suitable for medium and low hardness, Mohs hardness <6 level of non-flammable and explosive brittle materials, such as calcite, chalk, limestone, dolomite, talc, mica, diatomaceous earth, barite, gypsum, alumite, Graphite, Fluorite, Phosphorite, Potash, Pumice and so on.

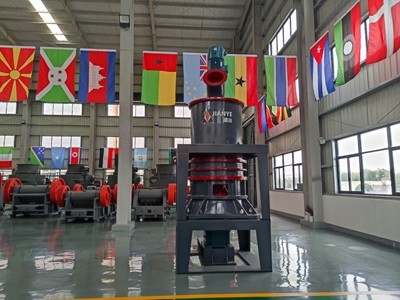

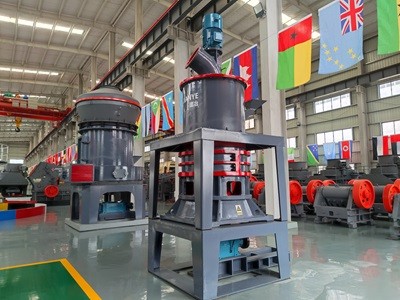

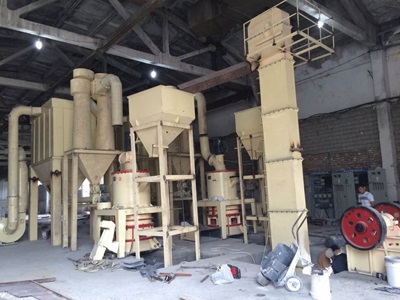

Photos

Advantages

1. High efficiency: in the case of the same fineness of the finished product, the output is 40% higher than that of the air flow mill and stirring mill.
2. High degree of utilisation of wear parts: in the case of the same fineness of materials and finished products, it has a longer service life than the wear parts of impact crusher and turbine mill, generally up to more than one year.
3. Safety and reliability: because there is no rolling bearing and screw in the grinding chamber, there is no problem of bearing and seal damage, and there is no problem of screw loosening and destroying the machine.
4. High product fineness: the product fineness can reach d97≤5um at one time.
5. Environmental protection: the use of pulse dust collector and muffler reduces the dust pollution and noise, and achieves the environmental protection standard, which plays an environmental protection role for the surrounding environment.

Working Principle

The host motor drives the main shaft and all layers of the turntable to rotate through the reducer, and the turntable drives dozens of ring rollers to roll and rotate in the grinding ring raceway through the pins.

The large materials are crushed into small particles by hammer crusher and then sent into the storage bin by elevator, the electromagnetic vibrating feeder will send the materials evenly to the middle of the upper turntable, and the materials will be scattered to the periphery of the circle under the action of centrifugal force and fall into the raceway of the grinding ring to be crushed by the ring rollers' stamping, rolling, grinding and crushing. Materials crushed by the layer fall into the second and third layer, high-pressure centrifugal fan suction will be adsorbed by the external air inside the machine, and will be crushed by the third layer of coarse powder into the powder selector.

The rotating turbine in the powder selector makes the coarse particles fall back to regrind, and the fine powder enters the cyclone collector with the airflow and is discharged from the discharging valve at the lower part of the collector, which is the finished product, while the airflow with a small amount of fine dust is purified by the pulse dust collector and discharged through the blower and the muffler.

Application Area

Ore super-micro grinder mill is an advanced fine grinding equipment, which is widely used in the field of processing various ores. Its application fields mainly include but are not limited to the following:
1. Construction industry: in the construction field, the ore ultrafine grinder mill is mainly used for the preparation of concrete, cement, mortar and other building materials. By crushing and grinding the ore finely, high quality sand and gravel aggregate can be obtained to meet the demand for raw materials in the construction industry.
2. Mining field: the application of ore ultrafine grinder mill in the mining field is mainly reflected in the mining and ore dressing process. It can crush all kinds of ores and provide qualified raw materials for subsequent beneficiation and smelting.
3. Chemical and metallurgical industry: in the chemical and metallurgical industry, the ore super-micro grinder mill can be used to crush various ores, slag and chemical raw materials. Through crushing and screening, different size and quality of raw materials can be obtained to meet the subsequent processing and smelting requirements.
4. Environmental protection field: Ore ultrafine grinder mill can also be applied in environmental protection field, such as tailings treatment and resource utilisation of solid waste. By crushing and grinding the tailings or waste, it can be transformed into valuable resources and realise the resourceful use of waste.

Technical Parameter
